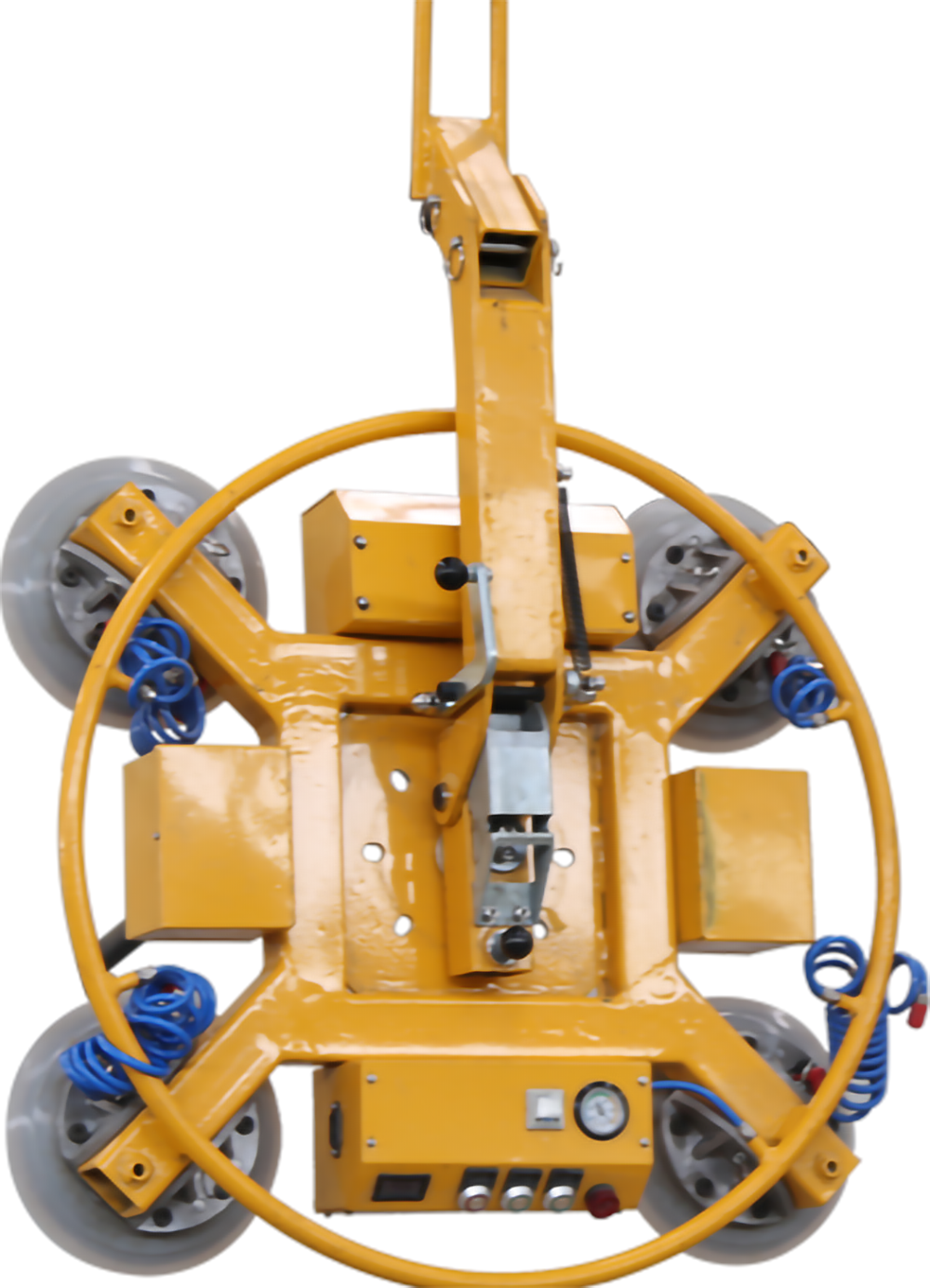

X Type Electrical Glass Lifter Sucker
The source of power for this kind electrical glass lifter comes from battery with DC 12V, no need to connect with cable. If there is power failure unexpected, the pressure maintaining function will be activated with light and acoustic, to alarm the workers to take emergency action. The 10 minutes power-off protection device can protect the workers against any injury.
The display of digital vacuum pressure and LCD battery column make the electric glass sucker easier to control. The full closure protection of surface makes it suitable for outdoor use. The rotation angle is ups to 360°, and the tilting angle is from 0°to 90°with spring lock positioning. The extension-arm and remote control device is customized, we can add it according the customer’s requirements.
This electric vacuum suction cup lifter is efficient, fast, safe and labor-saving. The battery could be charged full within 4 hours, but can work constantly around 30 hours to 40 hours, not only saved the cost, but also increase efficiency. The electric vacuum lifter is compact and easy operation, only one worker could handle this electric glass lifter well to move the glass pieces.

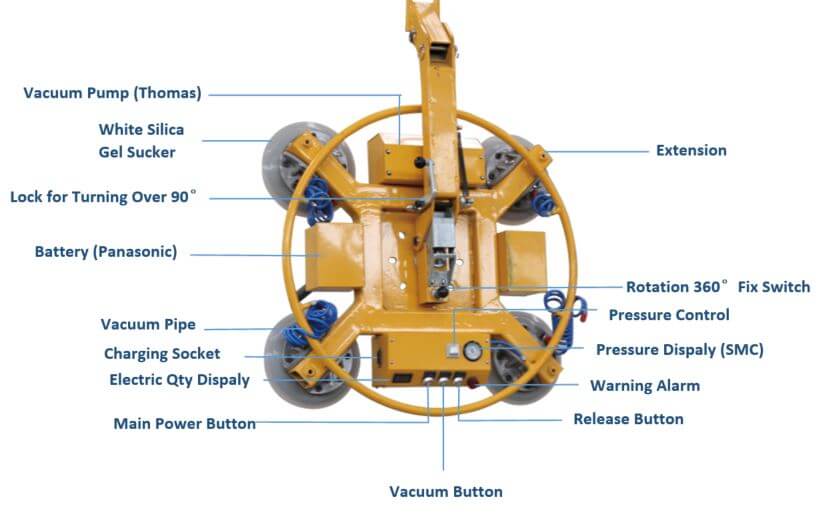

The main pneumatic component in the electrical glass lifter is from global famous brand, such as the vacuum pump is from Thomas in America, the pressure display is from SMC in Japan, and the battery is from Panasonic in Japan, the quality of the motor control glass lifter can be guaranteed. Now more and more deep processed glass factories choose us to buy custom made X type electrical glass lifter sucker.
Parameters
Model | NG-X4 | NG-X6 | NG-X8 |
Quantity of Suckers | 4 | 6 | 8 |
Loading Capacity | 500KGS | 600KGS | 800KGS |
Operating Voltage | DC12V | ||
Battery Working Life | 30~40hours | ||
Moment of Power-off Protection | 10minutes | ||
Rotation Angle | 0°~360° | ||
Tilting Angle | 0°~90° | ||
Materials of Sucker | Silicon Gel |
Hot Tags: X Type Electrical Glass Lifter Sucker, glass robert, vacuum lift systems, vacuum plate lifter, heavy duty glass suckers, industrial suction cups for glass, glazing lift, China, manufacturers, suppliers, factory, customized, price
