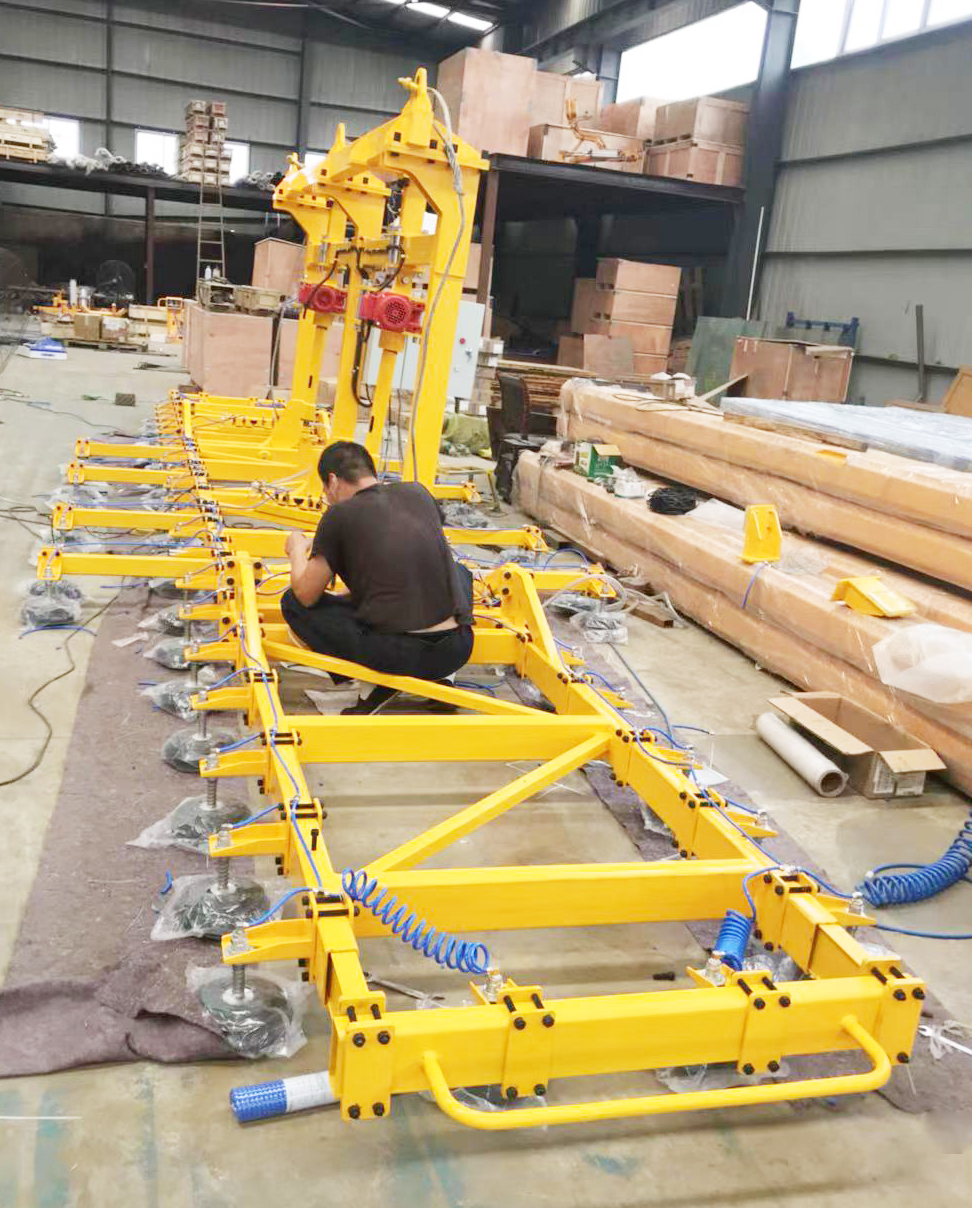

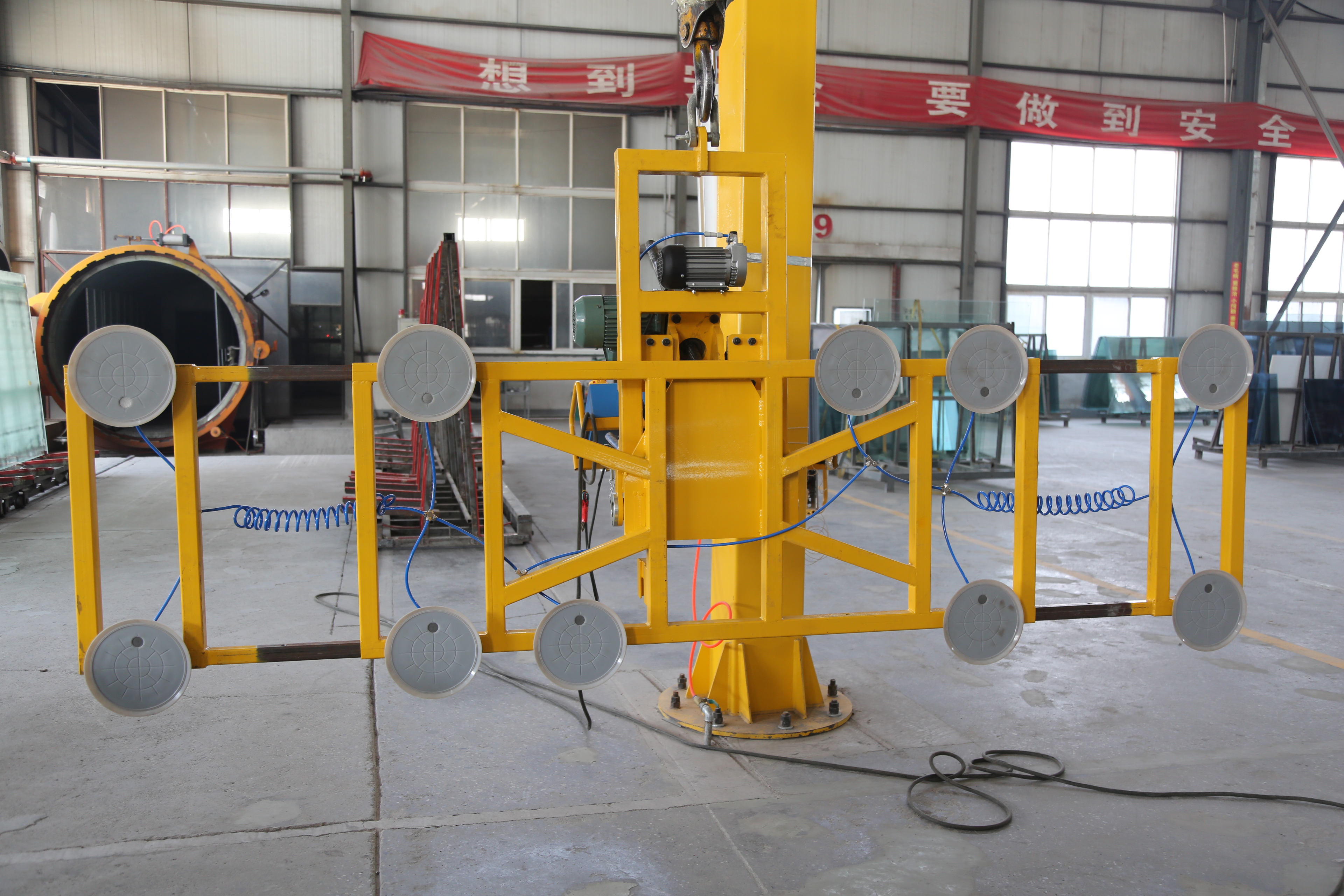

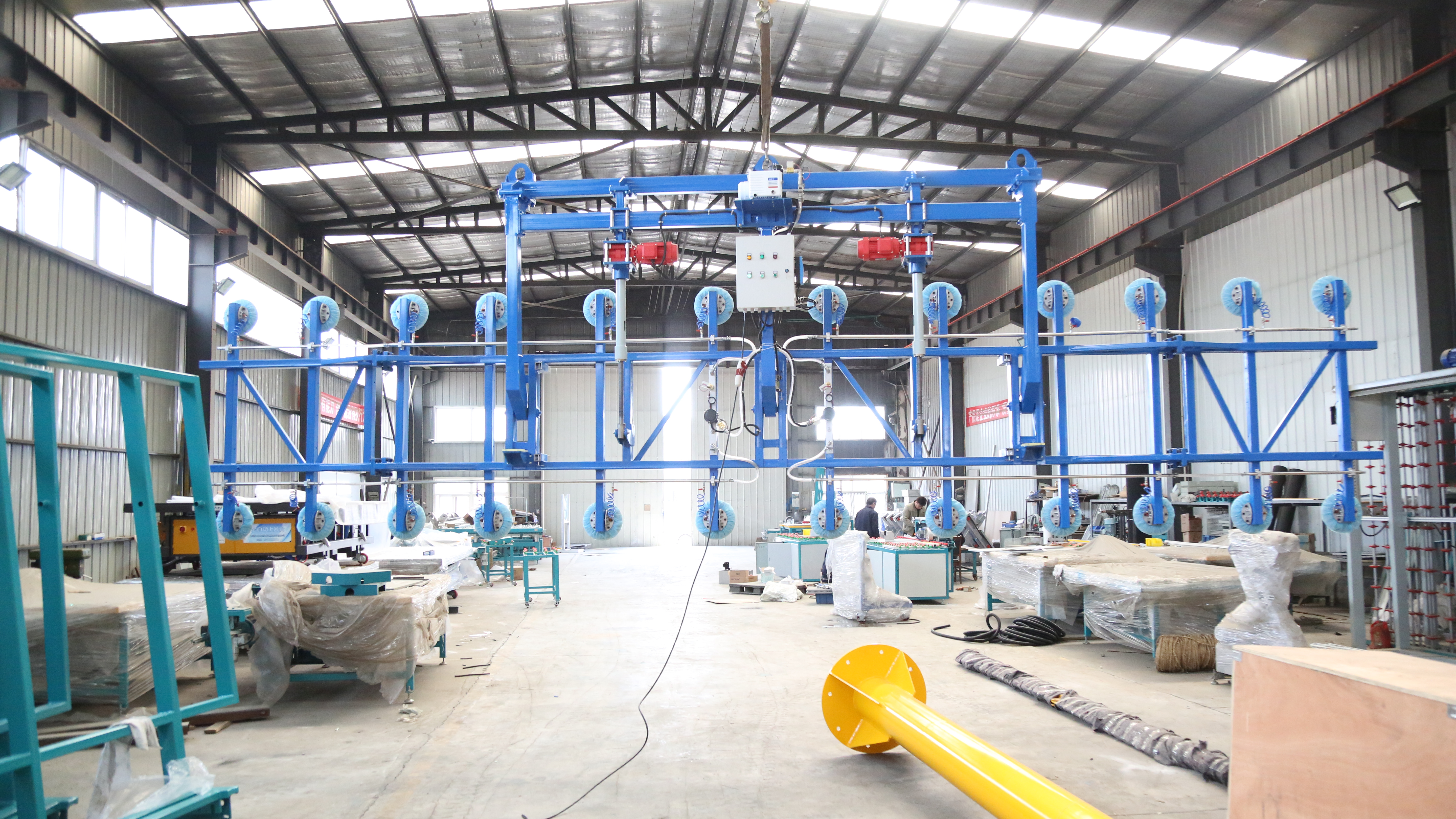

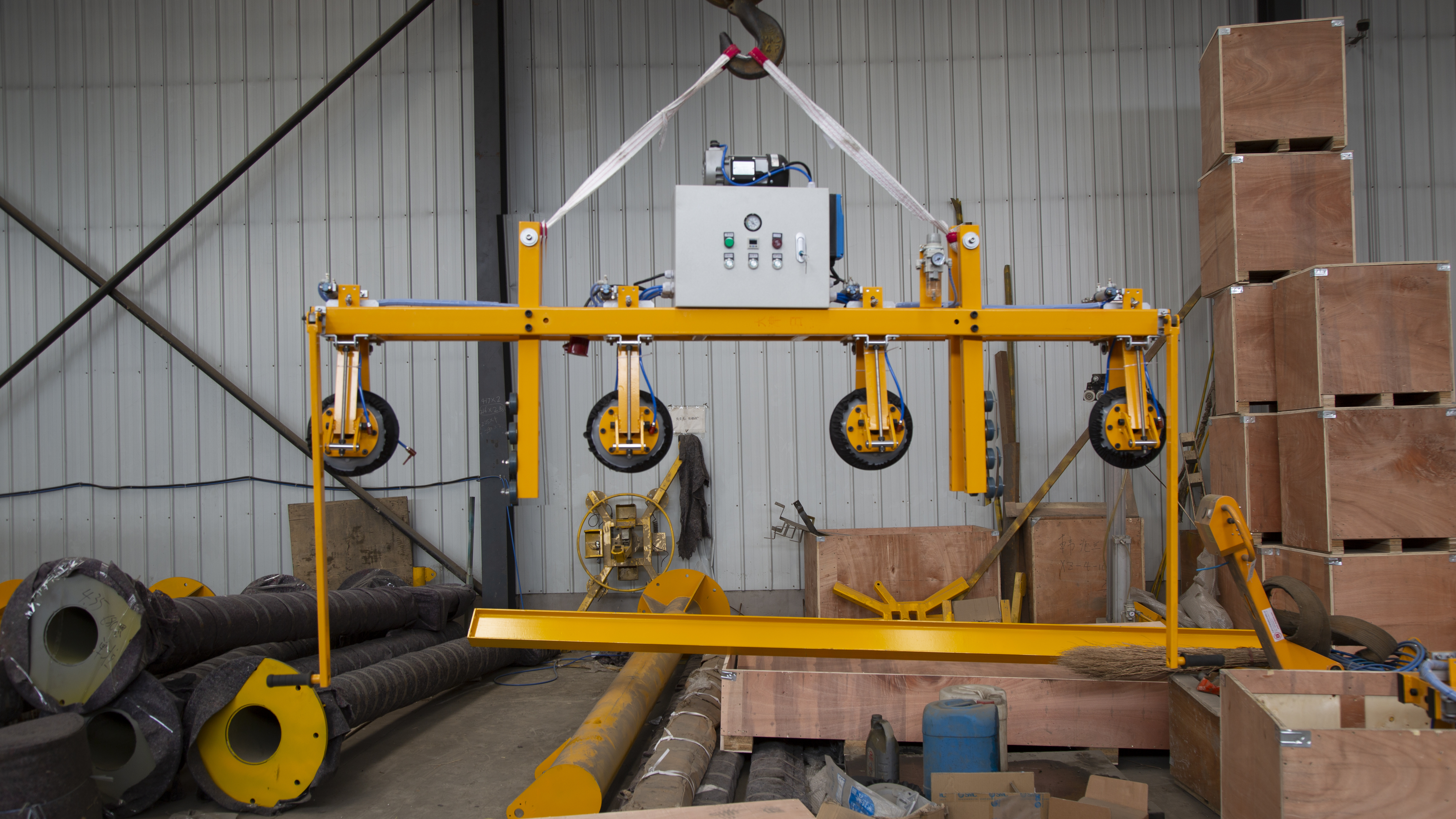

Jumbo Size Electrical Lifter Sucker
Now more and more insulated glass with super big size are installed on the curtain wall directly, this kind glass is heavy with large size, not easy to lift and install easily. This heavy glass lifting equipment could solve this problem perfectly, it is also used in the large size glass production and movement.
There are 24 sucker cups(or custom made) and the max loading capacity ups to 2000KGS. The sucker cups is made from imported silicon gel, which resist the temperature from -20 degrees to +80 degrees. The frame of this heavy duty glass suction lifter is made from high quality square pipe, with the features high strength, less impurities and deformation resistance. The main components on the heavy duty suction lifter are from the global famous brand, such as the vacuum pump with stable and large flow rate is from American THOMAS, the durable switches is from Fuji, even for the buzzer and alarm light, it also adopt the Siemens brand, guaranteed the electric glass sucker with superior quality and high performance.

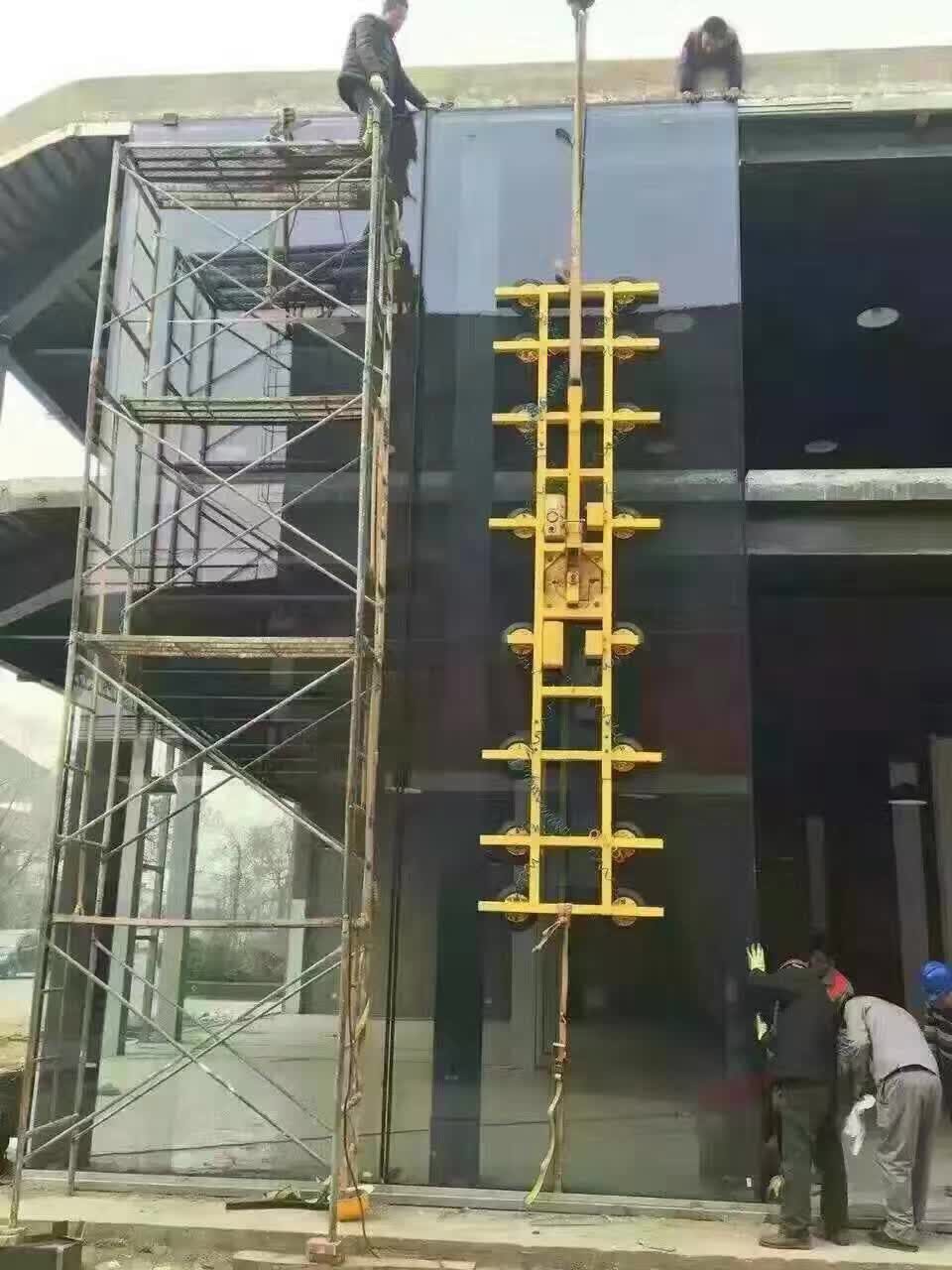

There are also protection equipment against power failure and vacuum leakage, Once the power failure happened unexpected ,the pressure keeping device can extend the handling time to keep the safe. This lifter sucker is designed specially for super large glass, especially for the curtain wall installation and jumbo size glass movement, it is safe, efficient, and easy operation with the remote control device.
Parameter
Quantity of Sucker | 24(Customized) |
Max Loading Capacity | 2000KGS |
Operating Voltage | DV48V / AC380V (Optional) |
Battery Working Life | 15～20hours |
Rotation Angle | No Allowed |

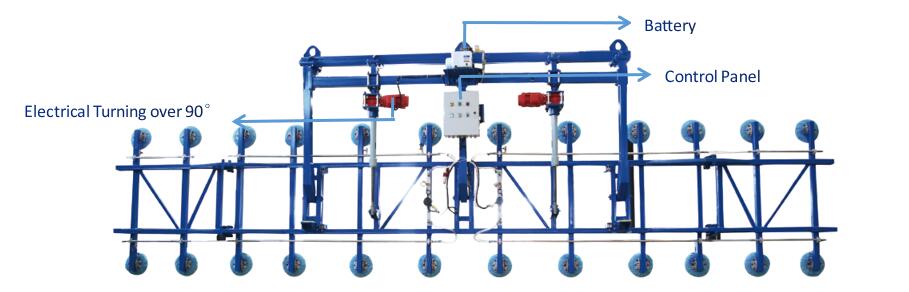

Tilting Angle | Electric 90° |
Control Method | Remote Control |
Air Supply | Electric Vacuum Pump Compressed Air 6pa～8pa |
Safety Protection | Power off protection for 15minutes without glass falling off Optical and acoustic signal warning against power failure or vacuum leakage |
Hot Tags: Jumbo Size Electrical Lifter Sucker, electric glass sucker, vacuum sheet lifter, vacuum crane lift, glass vacuum holder, lift glass, China, manufacturers, suppliers, factory, customized, price
