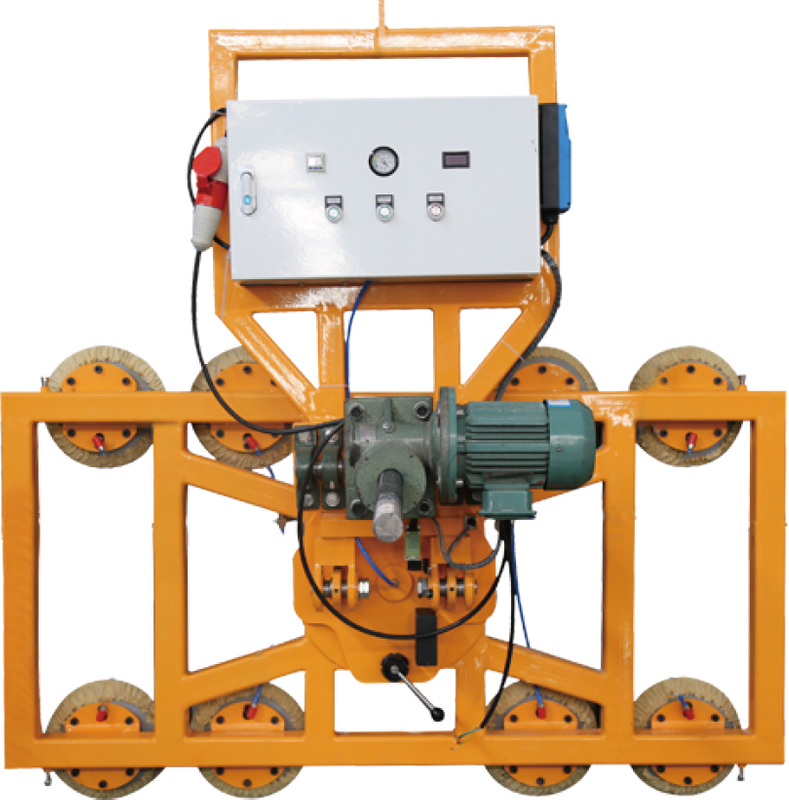

H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating

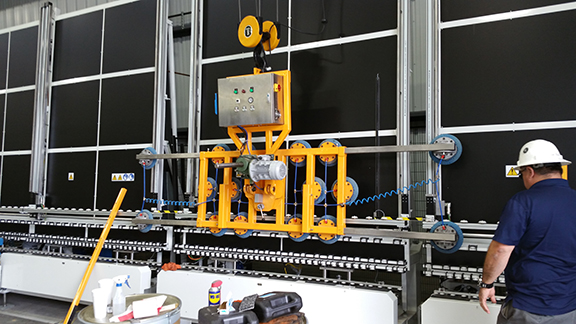

This glass lifter sucker is another type with H shape. The max loading capacity for this kind glass lifter is higher with vacuum pump, ups to 1300kgs. It is suitable for moving of big size glass. Such as the screen installation out of doors, and the glass curtain wall installation with big size.

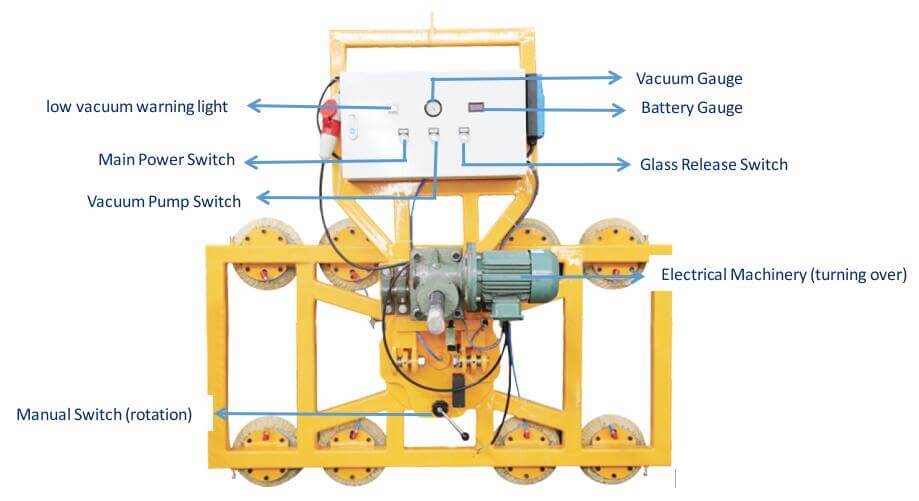

Through electric tilting, the sucker can turn over 90°, and the rotation angle reach 360°by hand. The lifter is equipped with barometer, could protect against low air pressure ups to 15 minutes. The warning light and buzzer can warn the workers to take emergency action once there is power failure or vacuum leakage. The power-off protection and alarm function could protect the workers well against any injury unexpected.
We use famous brand components to make the suction lifter, such as the American Thomas vacuum pump , the Japanese SMC pressure display, and the Japanese Panasonic battery, which could provide long service time with fast action.The quality of the glass lifting equipment can be guaranteed.
This heavy glass lifting equipment is easy operation with the remote control device. The stability and efficiency is high. If there is mechanical failure during the warranty period, the main parts(except the consumables)will be changed for free for this glass panel lifting equipment. Our strong and talented service team will provide you 24 hours technical support if needed.
Parameters
Quantity of Sucker | 8&10&12(Customized) |
Loading Capacity | 800～1300KGS |
Operating Voltage | DV48V / AC380V (Optional) |
Battery Working Life | 15～20hours |
Rotation Angle | Manual Rotation 360° |
Tilting Angle | Electric 90° |
Air Supply | Electric Vacuum Pump Compressed Air 6pa～8pa |
Safety Protection | Power off protection for 15minutes without glass falling off Optical and acoustic signal warning against power failure or vacuum leakage |
