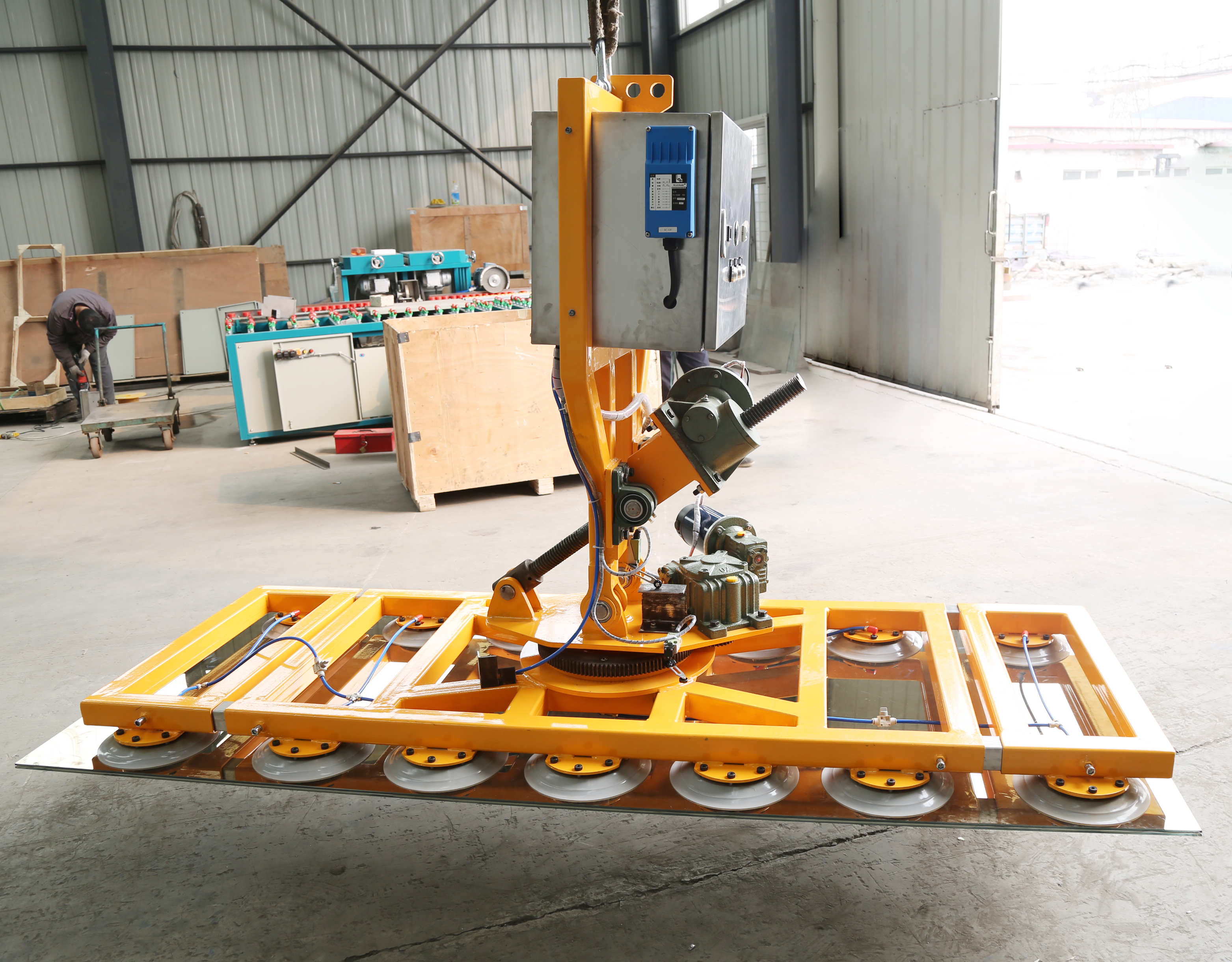

Electrical Glass Lifter Sucker With Electrical Tilting and Electrical Rotating

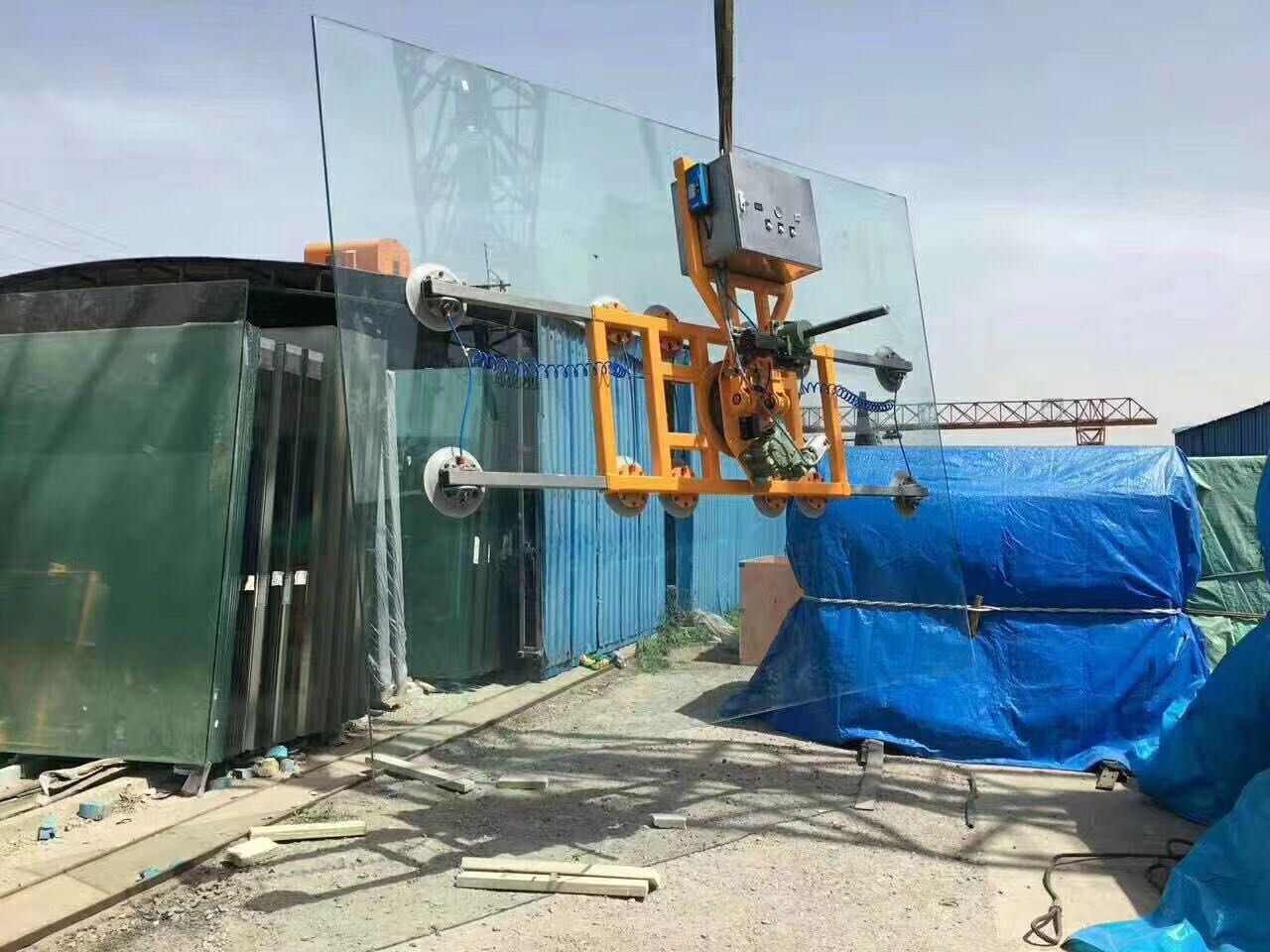

For the moving of big size glass, especially for the installation of jumbo glass on the curtain wall, the heavy glass lifting equipment with electrical titling and electrical rotating is perfectly suitable. The glass lifter machine is made from Q345 manganese steel plate square tube welding with fully enclosed shell structure, which is safe and reliable in the operation. The vacuum pump is adopt from American THOMAS, the battery fuel gauge and digital display vacuum pressure switch is from Japan, made the quality of this glass panel lifting equipment guaranteed.
The function of protection against power off and warning against power failure or vacuum leakage, makes the operation more safety. If need install the jumbo size glass on curtain wall outside, we could add the remote control device, then the installation is more convenient,safe, quick and efficient.
This heavy duty glass suction lifter can load the glass weight ups to 1500KGS, the battery working life is around 15 to 20 hours after full charged. The rotation angle ups to 360°with manual operation, and the tilting angle ups to 90°by electric control.
This heavy duty suction lifter is easy to operate with high stability and the maintainence is convenient . It is labor-saving, cost-saving and have high efficiency. The glass vacuum lifting equipment is more and more popular among glass installer at home and abroad.
Parameter
| Quantity of Sucker | 10&14(Customized) |
| Loading Capacity | 1000～1500KGS |
| Operating Voltage | DV48V / AC380V (Optional) |
| Battery Working Life | 15～20hours |
| Rotation Angle | Manual Rotation 360° |
| Tilting Angle | Electric 90° |
| Air Supply | Electric Vacuum Pump Compressed Air 6pa～8pa |

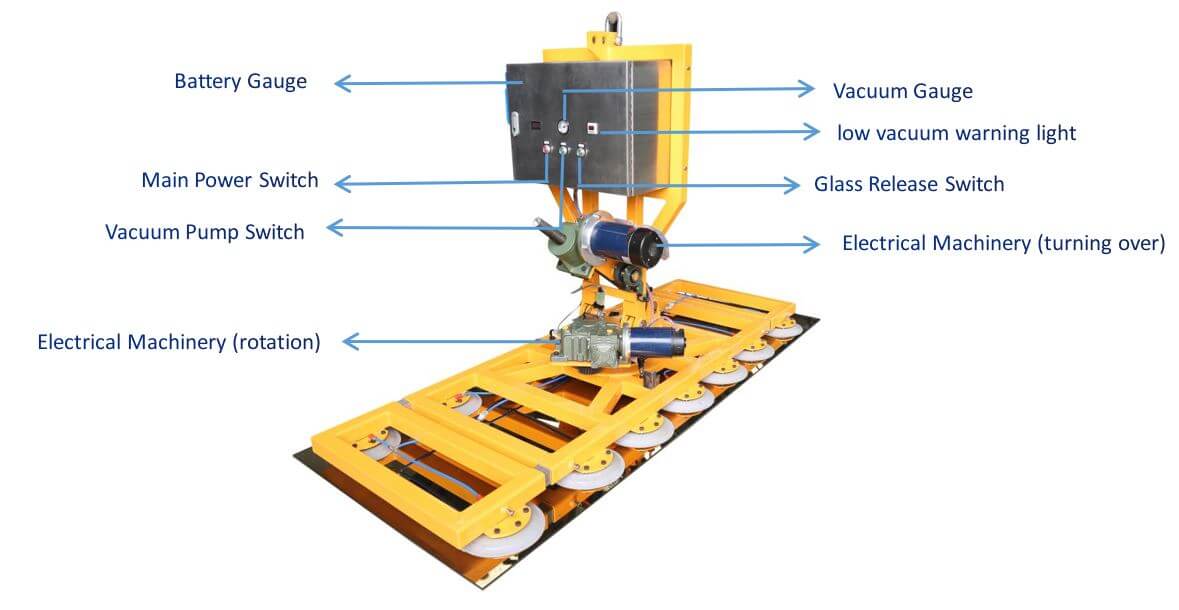

| Safety Protection | Power off protection for 15minutes without glass falling off Optical and acoustic signal warning against power failure or vacuum leakage |
Hot Tags: Electrical Glass Lifter Sucker With Electrical Tilting and Electrical Rotating, motor control glass lifter, vacu lifter, vacuum lifts hoists, glasslifter, vacuum hoist, China, manufacturers, suppliers, factory, customized, price
Electrical Glass Lifter Sucker With Electrical Tilting and Electrical Rotating
For the moving of big size glass, especially for the installation of jumbo glass on the curtain wall, the heavy glass lifting equipment with electrical titling and electrical rotating is perfectly suitable. The glass lifter machine is made from Q345 manganese steel plate square tube welding with fully enclosed shell structure, which is safe and reliable in the operation. The vacuum pump is adopt from American THOMAS, the battery fuel gauge and digital display vacuum pressure switch is from Japan, made the quality of this glass panel lifting equipment guaranteed.
The function of protection against power off and warning against power failure or vacuum leakage, makes the operation more safety. If need install the jumbo size glass on curtain wall outside, we could add the remote control device, then the installation is more convenient,safe, quick and efficient.
This heavy duty glass suction lifter can load the glass weight ups to 1500KGS, the battery working life is around 15 to 20 hours after full charged. The rotation angle ups to 360°with manual operation, and the tilting angle ups to 90°by electric control.
This heavy duty suction lifter is easy to operate with high stability and the maintainence is convenient . It is labor-saving, cost-saving and have high efficiency. The glass vacuum lifting equipment is more and more popular among glass installer at home and abroad.
Parameter
| Quantity of Sucker | 10&14(Customized) |
| Loading Capacity | 1000～1500KGS |
| Operating Voltage | DV48V / AC380V (Optional) |
| Battery Working Life | 15～20hours |
| Rotation Angle | Manual Rotation 360° |
| Tilting Angle | Electric 90° |
| Air Supply | Electric Vacuum Pump Compressed Air 6pa～8pa |
| Safety Protection | Power off protection for 15minutes without glass falling off Optical and acoustic signal warning against power failure or vacuum leakage |
