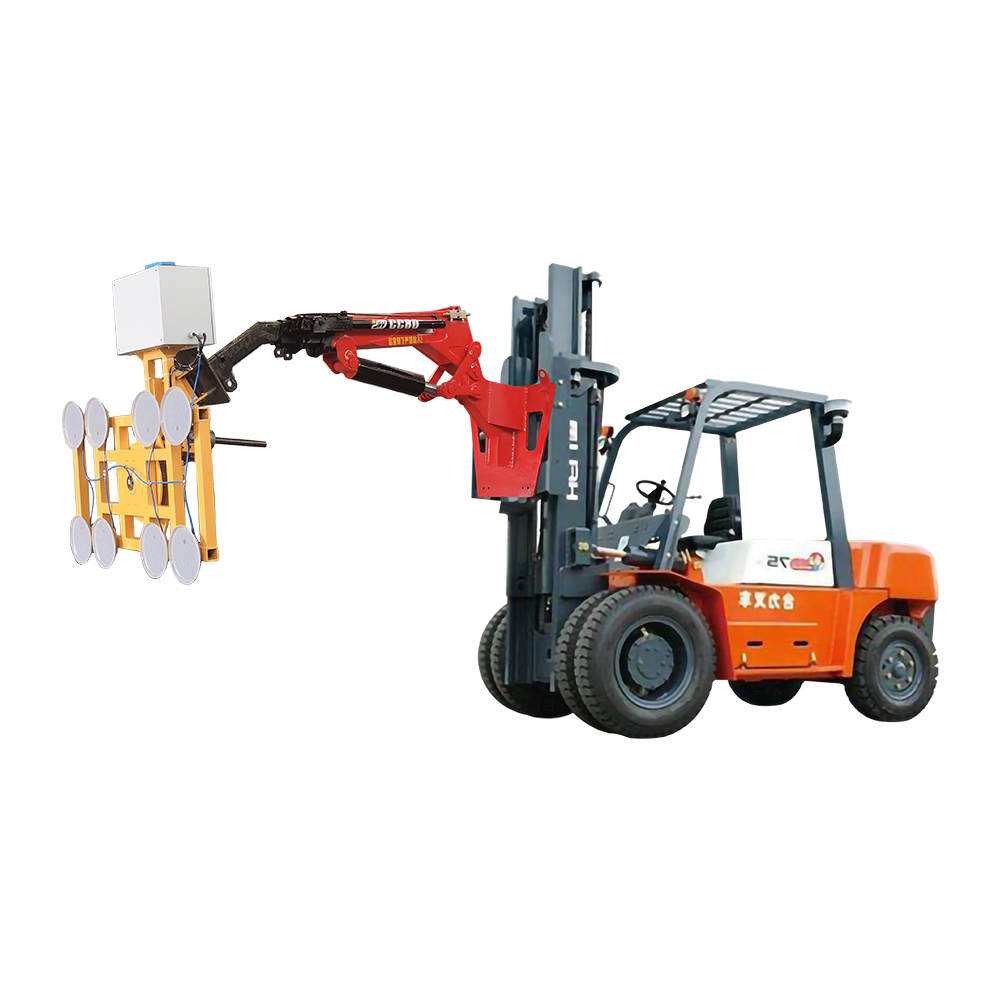

Flying Arm Suction Cup
This kind glass lifting equipment need to be used in concert with forklift truck. When this suction cup lifting device installed on the forklift truck door frame, the suction lifter is like the arm of the crane, then it is also called flying arm suction cup.
The glass lifting equipment have two hydraulic telescopic arms and one manual jib, the length reaches 5200mm, can be equipped with electric glass lifter with tilting and rotation functions. The battery capacity is 48AH, max loading capacity ups to 2500KGS. The operation is maneuverable and convenient, suitable for the outdoor glass installation.
This heavy glass lifting equipment also have requirement on the forklift truck. The minimum weight of crane is 500KGS, normally the weight of forklift truck is 3T, 5T or 7T. Otherwise there will be the risk of turning over for the forklift truck. Of course, we could also make this heavy duty glass suction lifter according the conditions of your forklift.
With this flying arm suction cup on the forklift, the big size glass with heavy weight can be moved and installed faster. Same as other glass lifter,
It also built-in protection device against vacuum leakage and power failure. The pressure keeping device will be active to extend the operation time, if the vacuum leakage or power failure happened suddenly. This heavy glass lifting equipment is featured with high-power motor, strong power, and stable operation, is widely used for the big size glass movement and installation, can provide long service life.

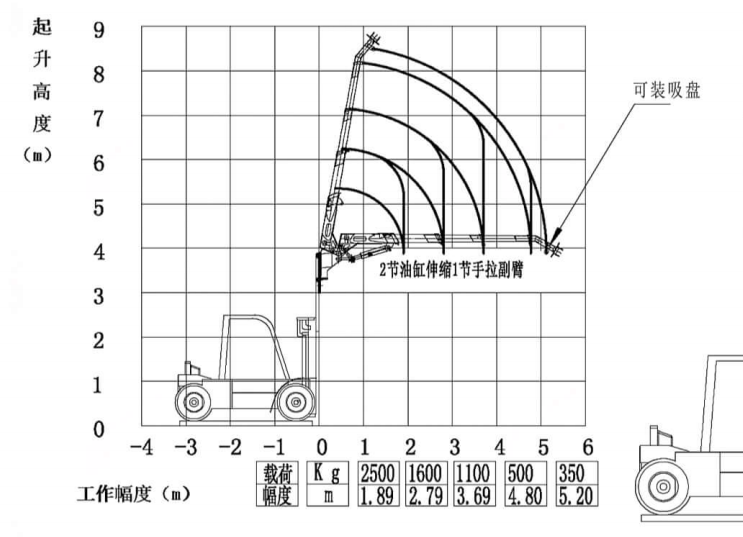

Parameter
Max Lifting Moment of Force(KN.M) | 50 |
Max Lifting Capacity(KG) | 2500 |
Max Working Range(mm) | 5200 |
Max Lifting Height(mm) | 8500(3m length forklift truck door frame) |
10000(4.5m length forklift truck door frame) | |
Operational Voltage(Mpa) | 20 |
Rated Flow(L/min) | 40 |

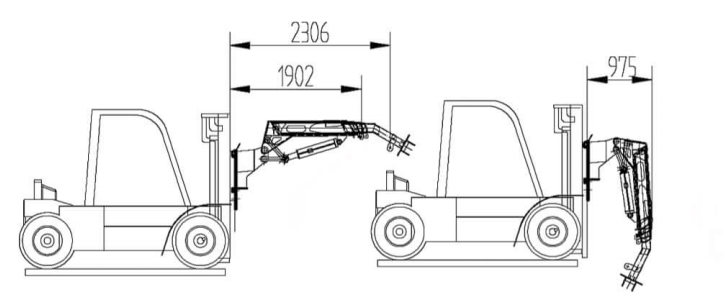

Min Working Range | 1902 |
Weight of Crane | 500KGS |
Suitable Forklift Truck | 3T,5T,7T |
