What are the U-arms and glass lifters?

Views: 323     Author: zhongle     Publish Time: 2023-09-27      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
What are the U-arms and glass lifters?

The Various Types Of U-Arms

U-arms are useful for loading and unloading glass from trucks, containers, and other storage containers. These arms are intended to hold the glass securely during transportation and handling, lowering the risk of damage or breakage. There are several types of U-arms on the market, each with its own set of advantages and disadvantages. We will look at some of the most common types of U-arms used for loading and unloading glass in this article. Click here for Container U Shape Suspension Arm.

1. Fixed U-Arms:

The most common type of U-arm used for loading and unloading glass is a fixed U-arm. These arms are intended to be permanently mounted on the loading dock or the truck's chassis, providing a secure and stable foundation for the glass during transport. Fixed U-arms are often equipped with rubber pads or suction cups to prevent slippage and can be adjusted to accommodate different sizes of glass panes.

2. Portable U-Arms:

Portable U-arms are intended for use in situations where a fixed U-arm would be impractical. These arms are easily moved and positioned as needed, making them ideal for loading and unloading glass at construction sites or other remote locations. Portable U-arms are usually equipped with wheels or casters and can be easily transported by attaching them to a truck or trailer.

3. Hydraulic U-Arms:

Hydraulic U-arms are designed to add support and stability when loading and unloading heavy glass panes. Hydraulic cylinders in these arms allow for precise control of the arm's movement and positioning. Hydraulic U-arms can also be adjusted to accommodate different glass sizes, and they are frequently outfitted with extra safety features like overload protection and emergency stop buttons.

4. Motorized U-arms:

Similar to hydraulic U-arms, motorized U-arms have electric motors for movement and positioning. These arms offer greater precision and control over the loading and unloading process, making them ideal for handling delicate or valuable glass panes. Remote control of motorized U-arms allows for greater flexibility and convenience during loading and unloading.

5. Telescoping U-Arms:

Telescoping U-arms are intended to hold glass panes of various sizes and shapes. These arms can be extended or retracted to change the length and width of the U-arm, which provides a secure and stable base for the glass during transport. Telescoping U-arms are frequently used when multiple sizes of glass panes must be loaded or unloaded at the same time.


U-arms are an essential tool for safely and efficiently loading and unloading glass. The best type of U-arm for a specific job is determined by several factors, including the size and weight of the glass, the location of the loading site, and the level of precision and control required during the loading and unloading process. Glass handling professionals can choose the right U-arm for their specific needs by understanding the different types of U-arms available and their unique features and advantages. This ensures that the glass is transported and handled safely and securely.


Selecting Pneumatic or Electrical Vacuum Lifters for Glass Processing

Transferring glass sheets between different processing stations efficiently and safely is critical in a glass processing factory. Vacuum lifters, which are commonly used to lift and move glass sheets, are available in two drive modes: pneumatic and electric. To assist you in making an informed decision, we will examine the differences between these two types of vacuum lifters in this article.


1. Pneumatic Vacuum Lifter

Pneumatic vacuum lifters are suitable for indoor use in gas-powered factories. They create a vacuum with compressed air and lift the glass sheets. However, the weight and length of the air cylinder limit the pneumatic vacuum lifter's maximum capacity and glass lifting height to 500 kg. If you need to lift heavier glass sheets, an electric hoist can be used in place of the air cylinder. Related product: Pneumatic Vacuum Glass Lifter Sucker with Rotating And Tilting Function.


Japan SMC is a dependable brand for pneumatic vacuum lifter air cylinders, vacuum generators, one-way valves, vacuum manometers, and other components.

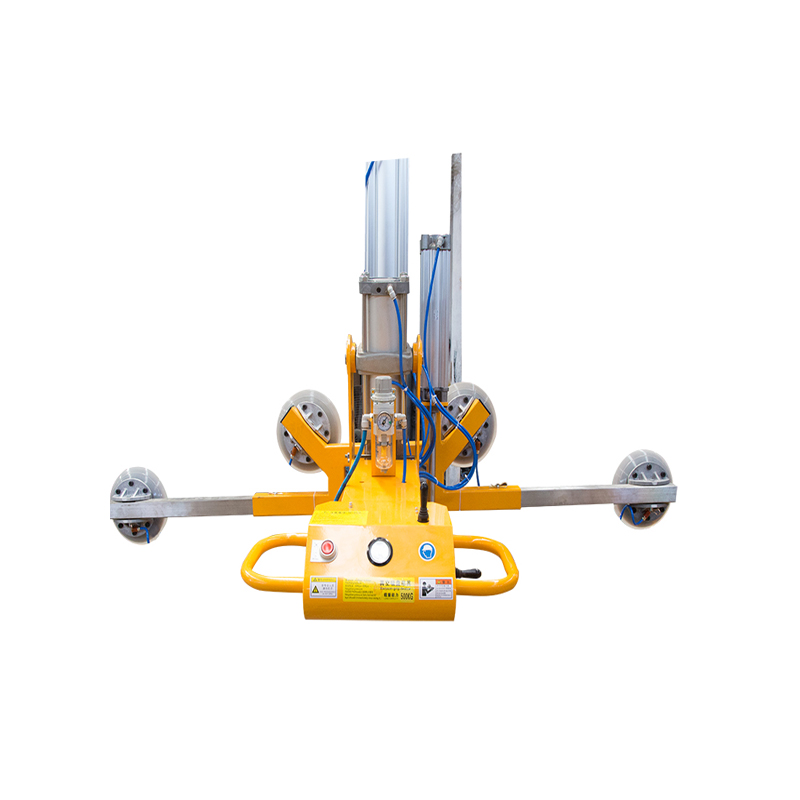

Pneumatic Vacuum Glass Lifter Sucker with Rotating And Tilting Function


2. Electric Vacuum Lifter

Electrical vacuum lifters, on the other hand, are appropriate for outdoor use and factories without a gas supply. They create a vacuum and lift the glass sheets using an electric motor or pump. Electrical vacuum lifters have a higher capacity of up to 1 ton and can lift glass to a greater height than pneumatic vacuum lifters.


A common concern with electrical vacuum lifters is what happens if the power goes out unexpectedly. To address this concern, most electrical vacuum lifters include a voltmeter and a barometer for measuring vacuum pressure. They also have a 15-minute power-off protection and a low-pressure alarm to warn users before the power goes out.


Look for brands that offer high-quality vacuum pumps and electrical apparatus elements for the control system when purchasing an electrical vacuum lifter. Thomas Vacuum Pump from the United States and SMC from Japan are two dependable brands for these components.


Which vacuum should you use?

Consider your specific needs and requirements when deciding between a pneumatic and an electrical vacuum lifter. If you work indoors and have access to a gas source, a pneumatic vacuum lifter may suffice. An electrical vacuum lifter, on the other hand, is the better option if you work outside or need to lift heavier glass sheets.


Other considerations for selecting a vacuum lifter include the size and shape of the glass sheets to be lifted, the frequency of use, and the level of automation required. Some vacuum lifters, for example, have adjustable suction cups that can accommodate various glass shapes and sizes. Others use automated controls to raise, lower, and tilt the glass sheets.


Finally, vacuum lifters are critical tools for glass processing factories that move glass sheets between processing stations. Pneumatic vacuum lifters are used indoors and have a lower capacity, whereas electrical vacuum lifters are used outdoors and can lift heavier glass sheets to a greater height. When selecting a vacuum lifter, consider your specific needs and requirements, and look for reputable brands for the components.
