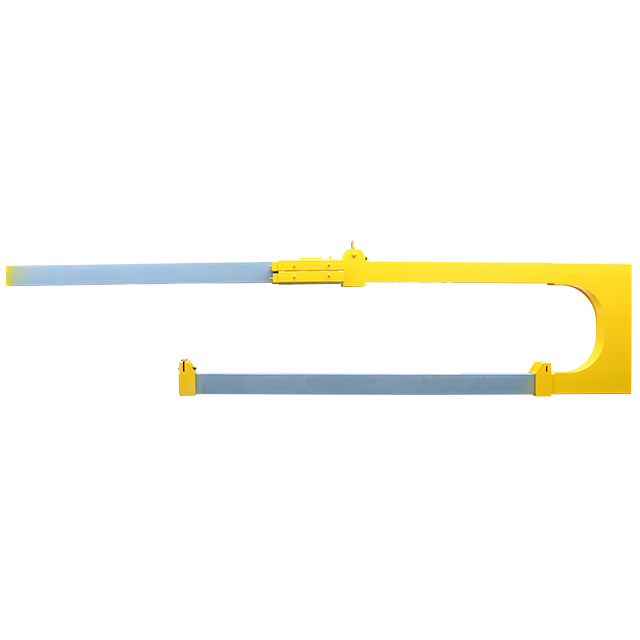

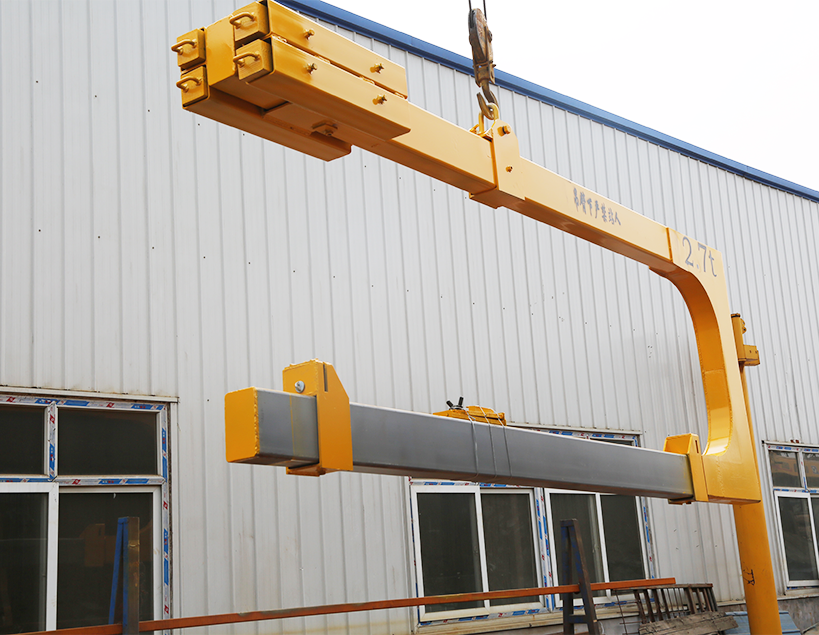

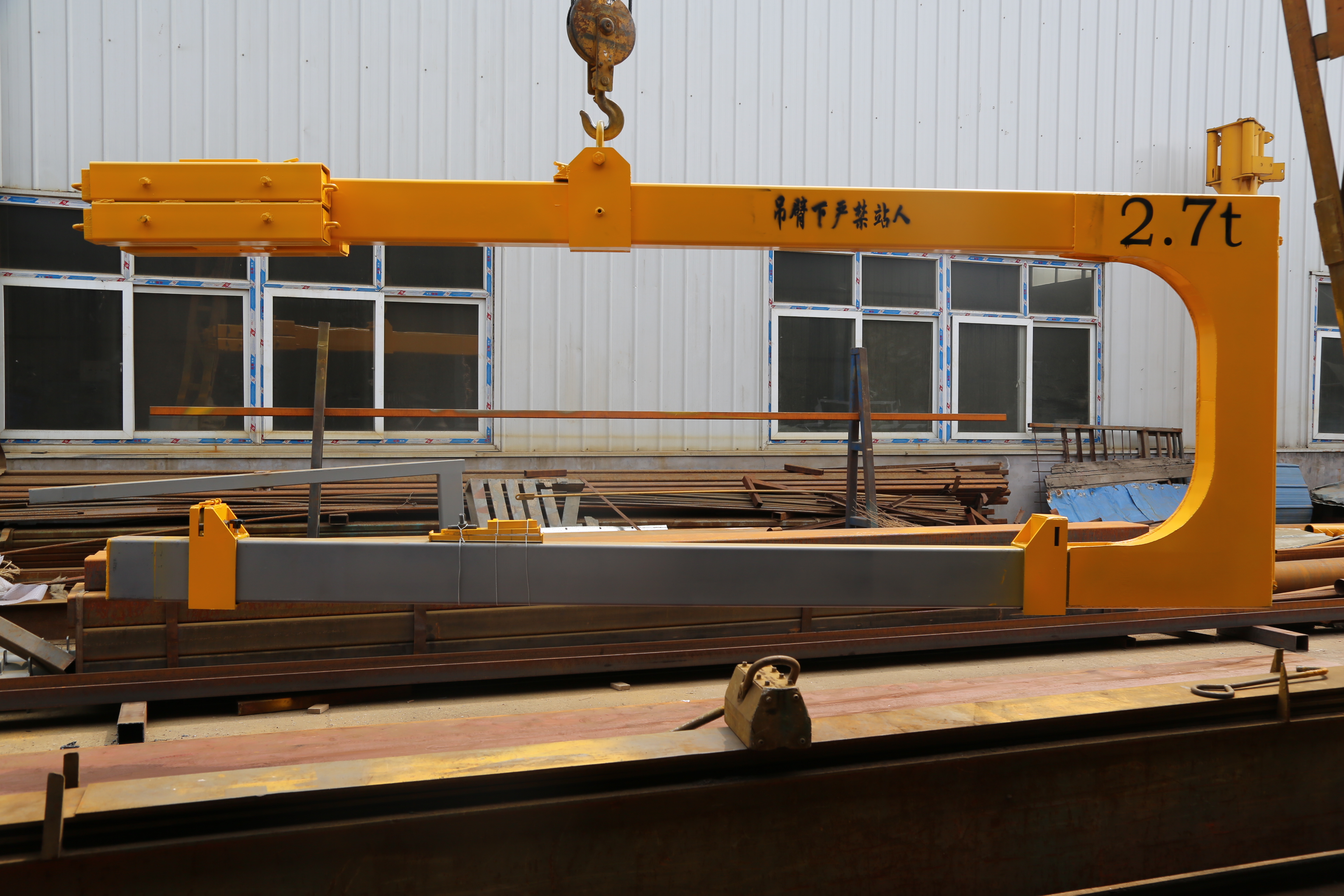

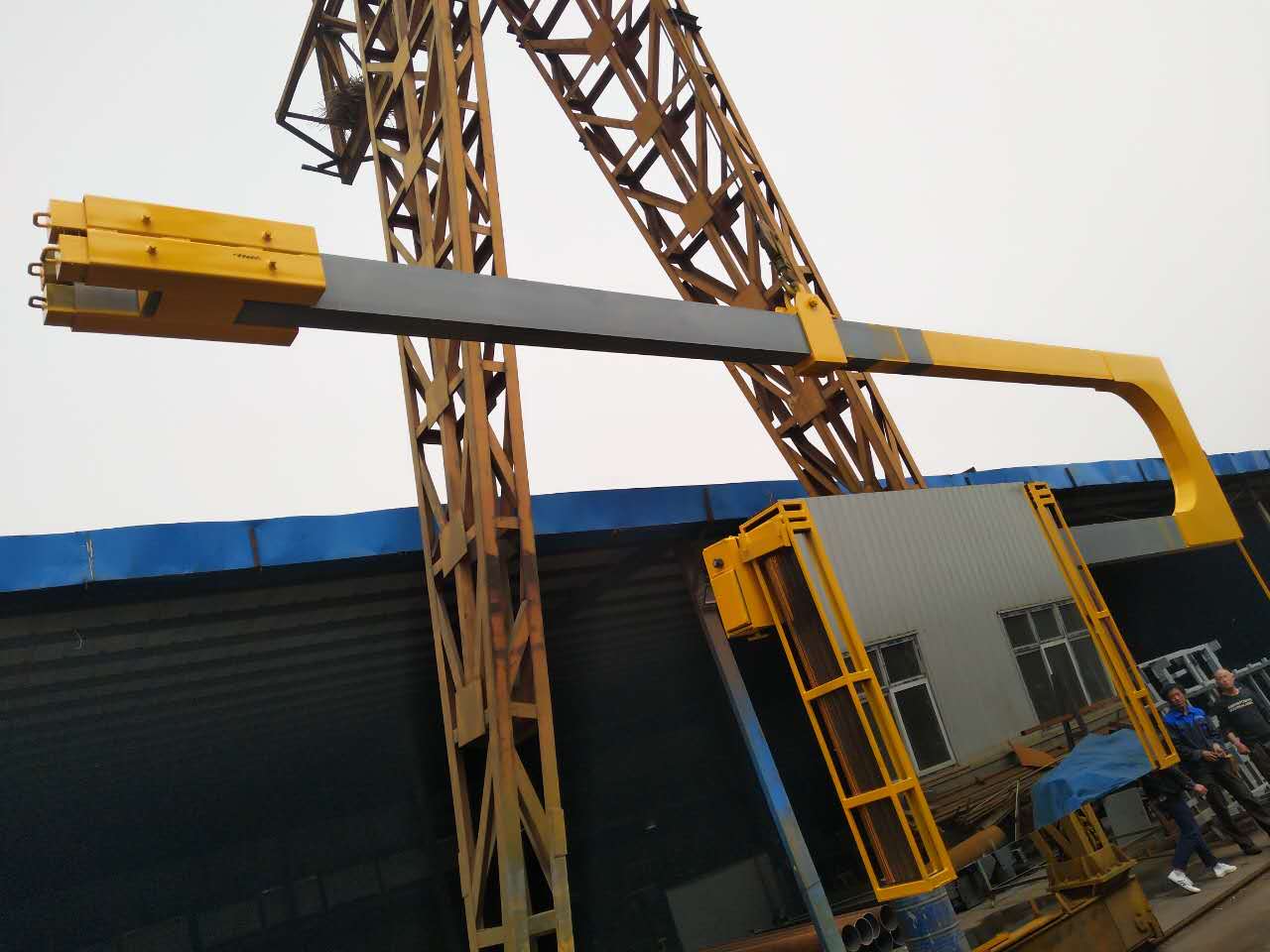

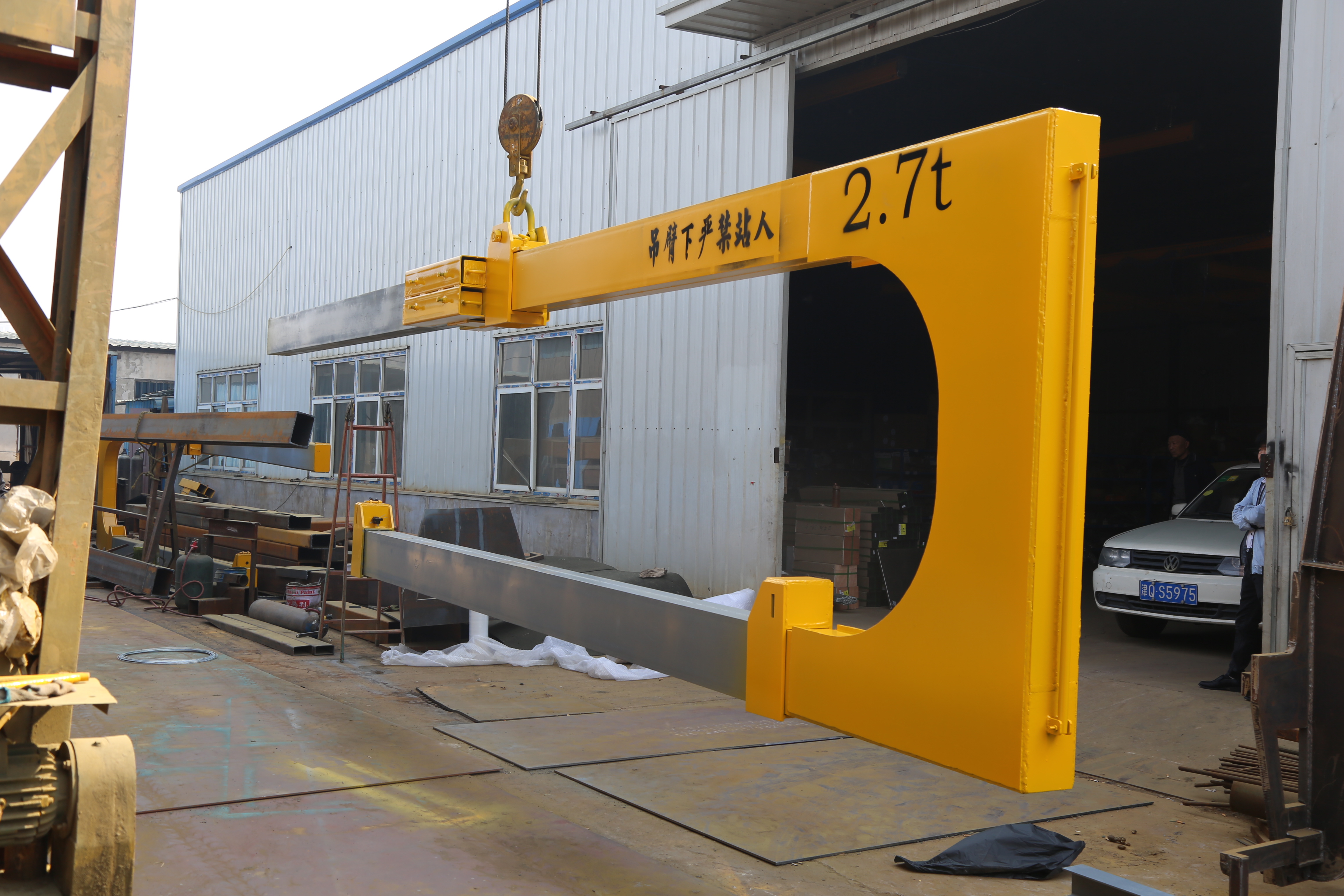

Container U Shape Suspension Arm

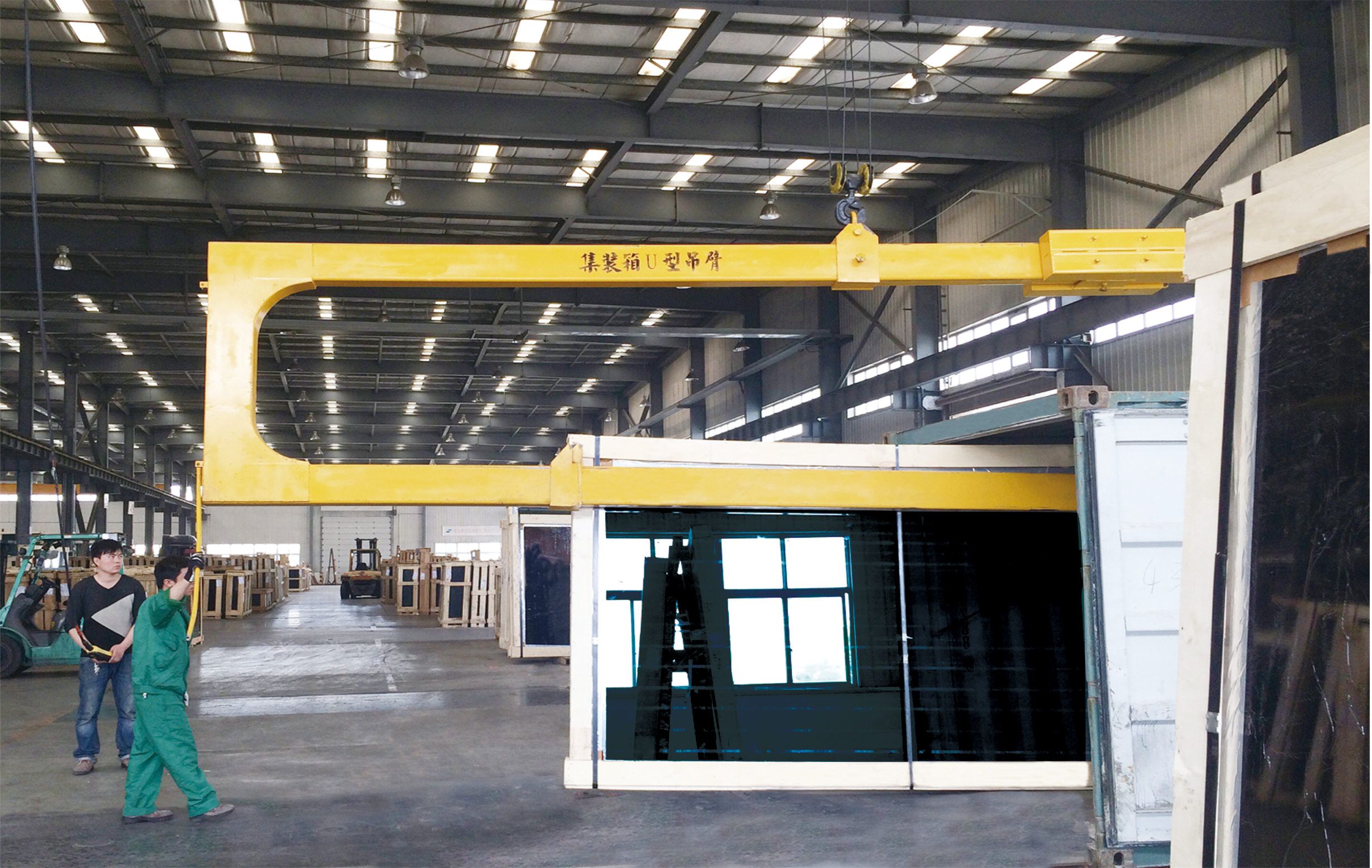

The U shape suspension arm is also glass container arm, can help to load and unload glass cases from container safely and efficient. This container load and unload equipment is made from manganese steel, its’ loading capacity ups to 2700KGS. Now it have been widely used in glass factory, wharf, station and other places where the container need be lifted. There are two types, type X with arm length 7500mm, only suitable for big size glass(Such as glass length 3660mm, 3300mm). Type Y with arm length 8850mm, both big size and small size glass are suitable.
Advantage
1 With ingenious mechanical balance principle, this equipment can lift small or big size glass easily, no need the coordination from forklift truck, it is labor-saving.

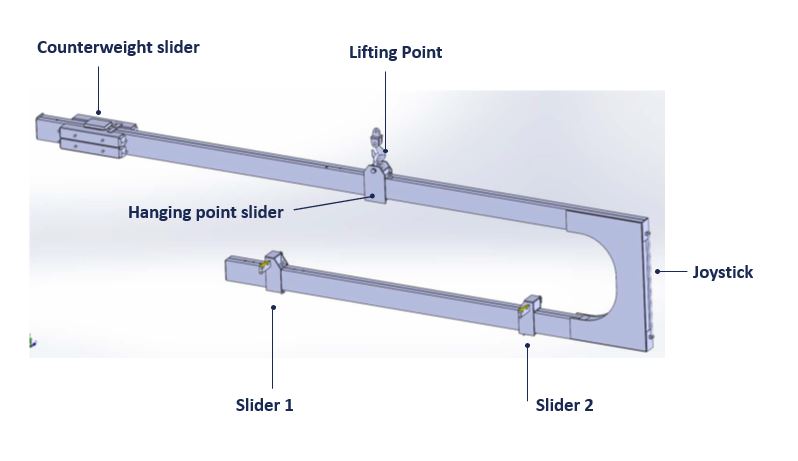

2 Slider on the equipment is easy to control, according the glass size, to slid the block, it is easy operation.
3 There is no damage to the glass and container, with long arm length, no need to drag the glass cases in the operation, it is safe and reliable.
4 Combined with crane, it can make full use of the workplace.
5 It is not limited to be used with wooden cases, both glass with iron cage and matched glass sling are workable.
6 With this glass container suspension arm, to load and unload glass from container is more convenient. No need to drag the wooden cases by the manual power. And with is U shape suspension arm, to load the container with closed top is easily and safe, no need to use the open top container with higher ocean freight. It is cost-saving, labor-saving with high efficiency.
Parameters
Model | CUSSA-X | CUSSA-Y |
Loading Capacity | 2700KGS | 2700KGS |
Net Weight | 1800KGS | 2200KGS |
Upper Arm Length | 7500mm | 8850mm |
Lower Arm Length | 6000mm | 6000mm |
Remarks | Suitable for Big Size | Both Big and Small Size are Suitable |
