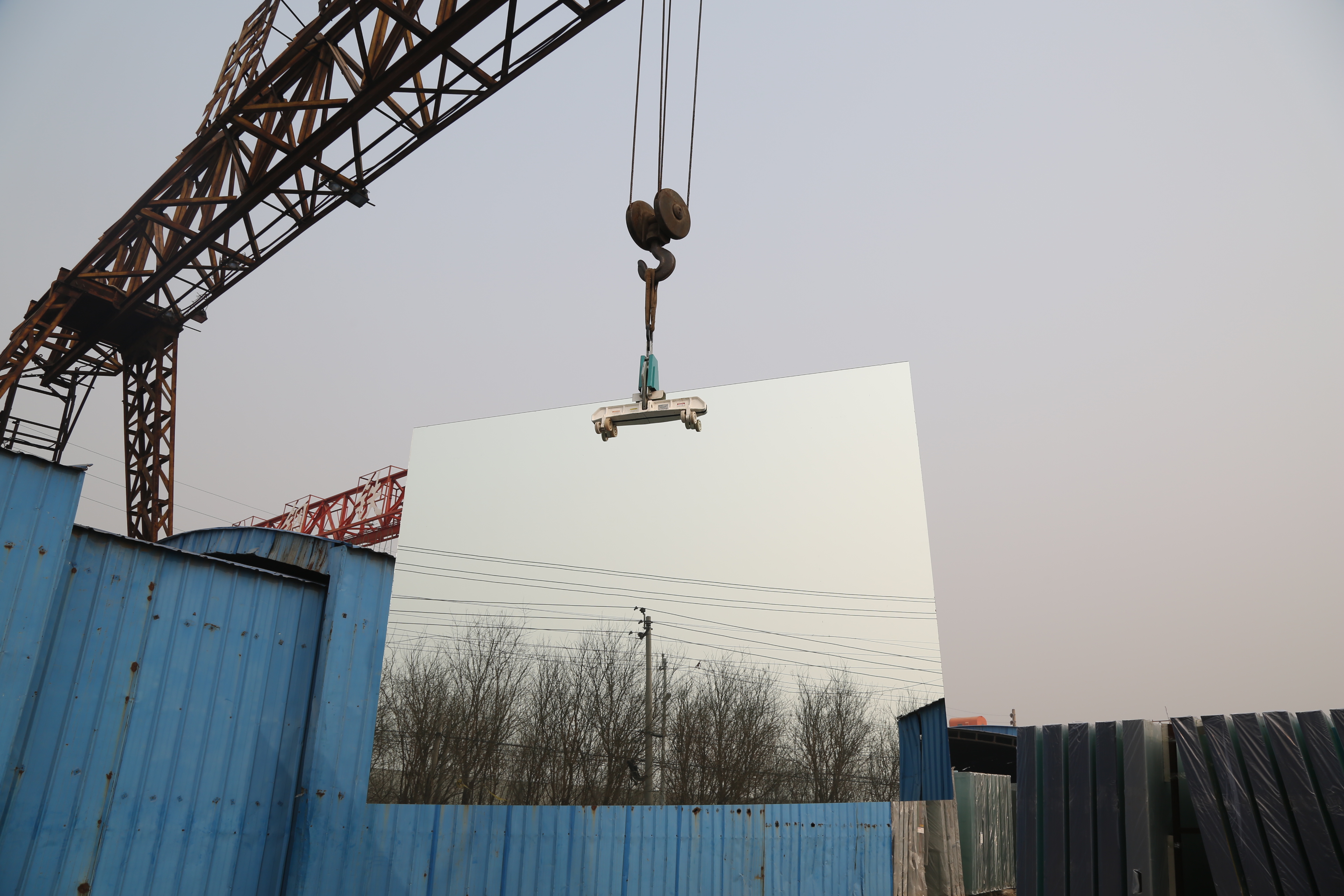

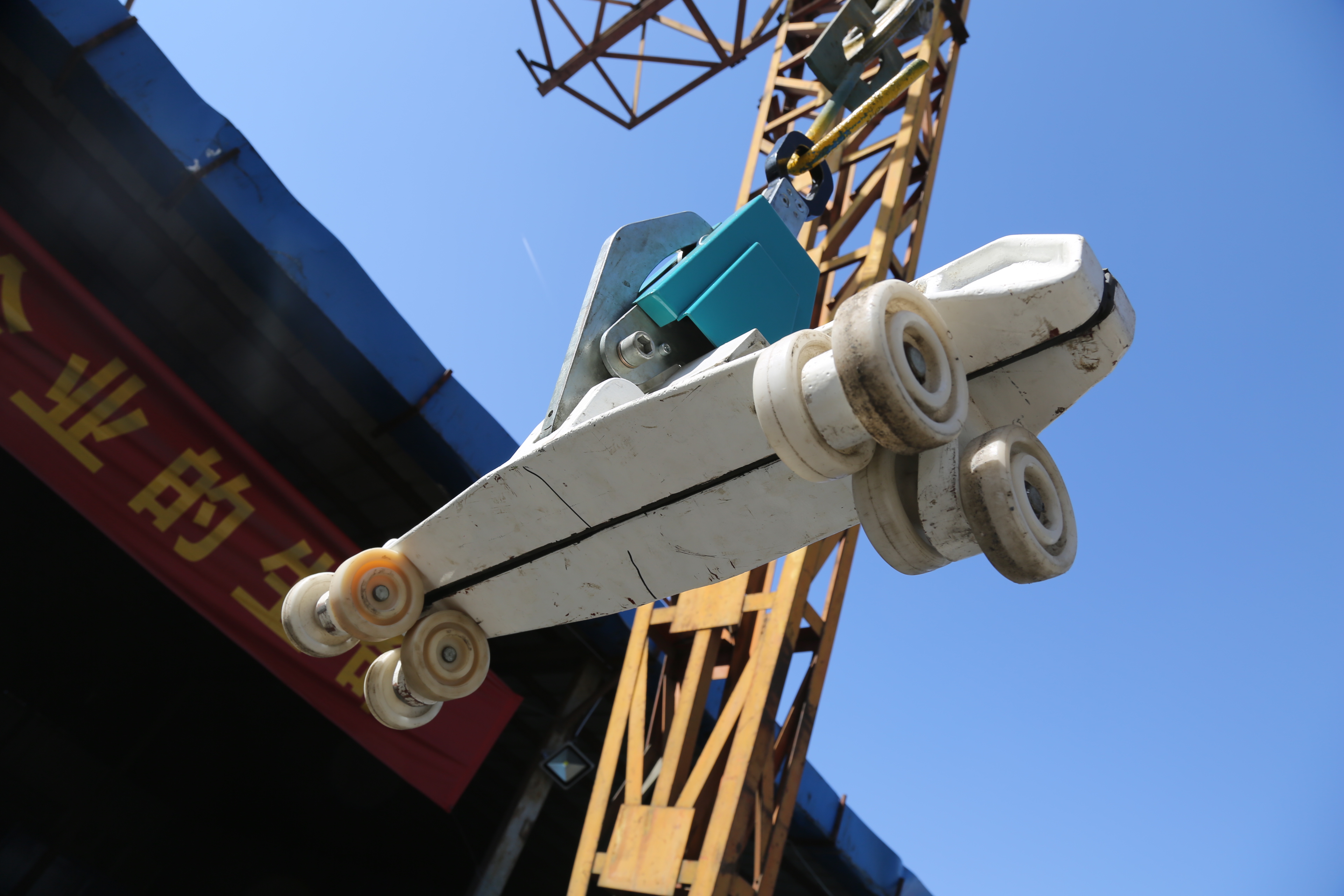

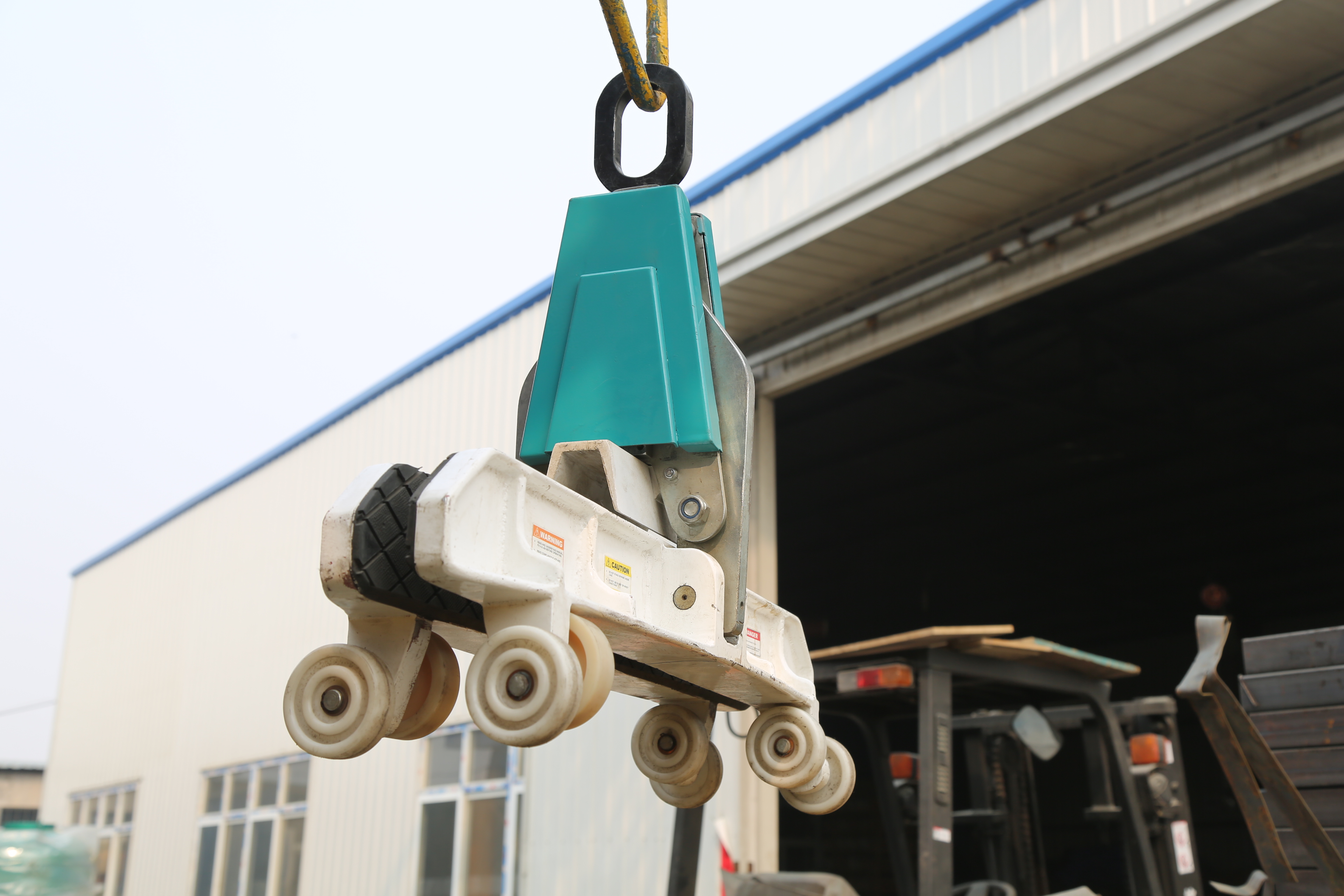

LC Glass Lifting Clamp
The LC glass lifting clamp is designed from Italian concept. Because of its high and stable performance on the lifting, added the exquisite technics, the LC lifting clamp is world famous now, especially in the glass field.
The needed strength during lifting for the clamp comes from the die-casting aluminum. The natural rubber parts and the die-casting aluminum part will never peel off by fusing together. The glass will never slip off because of the glass adhesion from the natural rubber parts. There are eight polyurethane casters at the bottom. The outer four wheels slide against the glass surface, which makes the glass slip easily. The inner wheels ensure the sandwiched glass slip along the wheels, don’t touch the aluminum and rubber.
The appearance size for this glass lifting clamps is 224mm×740mm×654mm, and its self weight is only 25KGS, but could lift the glass with weight ups to 800KGS. The glass thickness from 4mm to 19mm could be lifted by this glass holding clamp. This glass panel clamps can lift different type of glass, such as normal float glass, mirror, tempered glass, laminated glass and so on. Surely, if you have other special requirements about this glass shelf clamps, we could also make it for you.
With this glass lifting tool, the movement of glass becomes easily and safely, it is easy operation. Can save the labor cost and time for the glass factory, improved the working efficiency, enhanced the glass company competitiveness. If need any support, our strong and professional team could provide you 24 hours service, to solve any problems you meet, no need to worry about the using.
Parameters
Size | Self-Weight | Lifting-Weight | Glass Thickness | Opening Size |
224mm×740mm×654mm | 25KGS | 20KGS~800KGS | 4mm~19mm | 44mm |
Hot Tags: LC Glass Lifting Clamp, glass lifting clamps, glass holding clamp, clamps for glass, lifting glass, China, manufacturers, suppliers, factory, customized, price
LC Glass Lifting Clamp
The LC glass lifting clamp is designed from Italian concept. Because of its high and stable performance on the lifting, added the exquisite technics, the LC lifting clamp is world famous now, especially in the glass field.
The needed strength during lifting for the clamp comes from the die-casting aluminum. The natural rubber parts and the die-casting aluminum part will never peel off by fusing together. The glass will never slip off because of the glass adhesion from the natural rubber parts. There are eight polyurethane casters at the bottom. The outer four wheels slide against the glass surface, which makes the glass slip easily. The inner wheels ensure the sandwiched glass slip along the wheels, don’t touch the aluminum and rubber.
The appearance size for this glass lifting clamps is 224mm×740mm×654mm, and its self weight is only 25KGS, but could lift the glass with weight ups to 800KGS. The glass thickness from 4mm to 19mm could be lifted by this glass holding clamp. This glass panel clamps can lift different type of glass, such as normal float glass, mirror, tempered glass, laminated glass and so on. Surely, if you have other special requirements about this glass shelf clamps, we could also make it for you.
With this glass lifting tool, the movement of glass becomes easily and safely, it is easy operation. Can save the labor cost and time for the glass factory, improved the working efficiency, enhanced the glass company competitiveness. If need any support, our strong and professional team could provide you 24 hours service, to solve any problems you meet, no need to worry about the using.
Parameters
Size | Self-Weight | Lifting-Weight | Glass Thickness | Opening Size |
224mm×740mm×654mm | 25KGS | 20KGS~800KGS | 4mm~19mm | 44mm |
