Hand Crank Movable Glass Racks

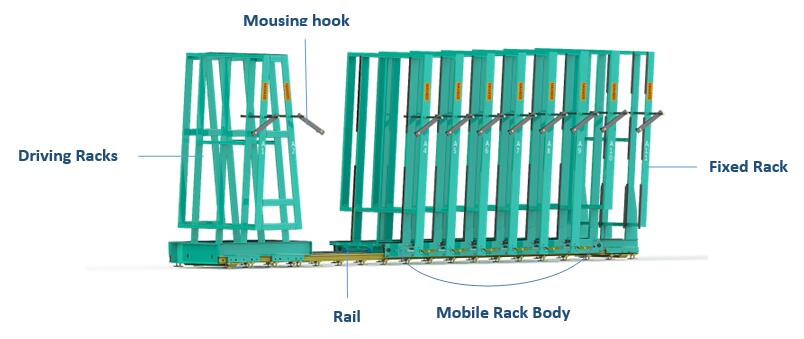

The hand crank movable glass racks mainly used in deep processing glass factories. The operators can move the racks with hook in the fixed direction on the rail. The biggest advantage of this equipment is that could save space. Needn’t large space, the factory could store different glass orderly. Compared with the electrical glass storage system, the movement of racks is under manual operation, obviously the cost for this manual glass storage system is lower.
This hand crank movable glass rack system is made from high quality square steel tubing(60×60×3mm), which have good corrosion resistance and perfect mechanical properties. The horizontal and vertical rubber pads on the racks with built-in steel plate, could protect the glass safety well. The rubber pads have moderate hardness, won’t left any scratches on the glass surface. The racks surface is treated by electrostatic spraying, made it anti-corrosion with long service life.
Now we have two normal types for this rack system, one is for glass with small size, which suitable for size 2440mm×1830mm, another type is for larger glass size, which is 3660mm×2440mm. Both of the two types could store the glass with maximum total thickness 250mm per rack. The maximum working loading weight every rack is 4000KGS. Now the popular rack quantity per set is 10, meet the requirements for medium and small glass factories.
This hand crank movable glass racks system can arrange the glass pieces in order within the limited space by the compact shape. Greatly improved the working efficiency, and save much cost and labors for glass factory. It can be custom made according different requirements and designs.
Parameters
Model | Width×Height | Max Working loading weight per rack | Max Storing Thickness per rack |
Hand Crank movable glass racks-E1 | 2440×1830mm | 4000KGS | 250mm |
Hand Crank movable glass racks-E2 | 3660×2440mm | 4000KGS | 250mm |
