Electrical Movable Glass Racks

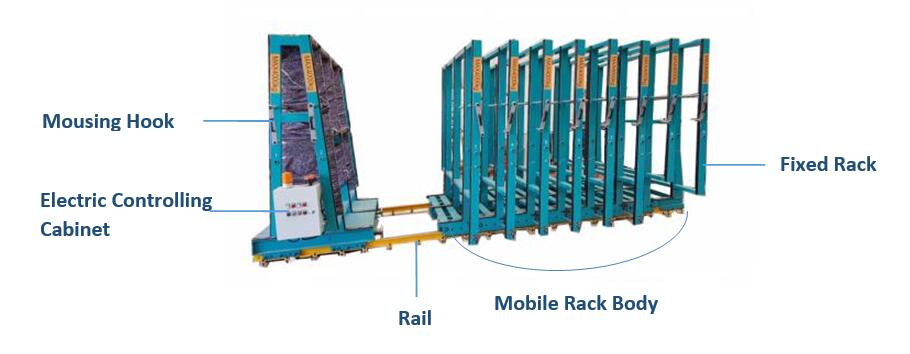

The electrical movable glass racks is comprised of two parts. One is mechanical part, used for glass storage and movement. Another part is electrical part, to provide power for the movement. Through the remote controller, the workers could control the mechanical pushing rod, to drive the required movable glass racks to move in a specified direction, the speed is 1m per mimute under the Electrical control.
The electrical movable glass racks is made from square steel tubing(60×60×3mm) with good corrosion resistance and perfect mechanical properties. The horizontal and vertical rubber pads with built-in steel plate could protect the glass against any dump.
This glass rack system can help glass factory to manage the glass orderly, especially suitable for the workshop with limited space. If need to take glass out, the marks on the rack system could help to figure out easily. If to put the glass on this rack, just move out the racks. All the movement can be finished under the help from overhead crane.If installed this glass rack system, the height of the workshop should be higher than 4m. This glass rack system could help to arrange the glass pieces orderly in a limited space with the compact shape. Greatly improved the working efficiency, and save much cost and labors for glass factory.
The electrical movable glass racks can be customized according different requirements. The racks can reach to 35 sets at maximum. Our professional and talented team could provide you 24 hours technical support if need, no need to worry about the problems in the installation and working.
Parameters
Product type | Width×Height | Max Working loading weight per rack | Max Storing Thickness per rack |
Electrical movable glass racks-E1 | 2440×1830mm | 4000KGS | 250mm |
Electrical movable glass racks-E2 | 3660×2440mm | 4000KGS | 250mm |
Hot Tags: Glass Rack System, rack system, glass storage system, glass racking system, rack manufacturing company, China, manufacturers, suppliers, factory, customized, price
