Detachable Glass Racks
The detachable glass racks is featured by its detachable characteristic. When the glass are on the racks orderly, the workshop space can be saved. But if no glass on the racks, too much hollow racks seems waste the workshop space. And if the racks could be detached, the transportation for the hollow racks is also easy, could save much space in the container. Then the detachable glass racks is the ideal solution for this problem.

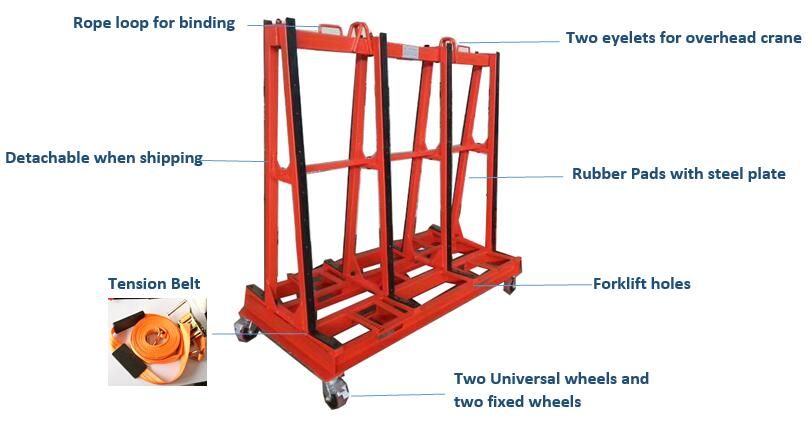

The detachable glass racks are made by high quality square steel tubing(60×60×3mm), which with good mechanical properties and corrosion resistance. There are also rubber pads with built-in steel plate on the horizontal and vertical frame, which protect the glass well again any scratches and any dump. To move the racks easily and make it stand stable, two universal wheels and another two wheels with brakes design are installed on the bottom, the workers can push the racks anywhere and stop it safely without any slide. The frame of racks surface is treated by electrostatic spraying, made it anti-corrosion with long service life. There are eyelets on the top and holes on the bottom, to combined with overhead crane forklift, could transport the glass plates safely.
This detachable glass racks is compact, light and easy to use.It could save space not only with glass filled, without glass, the racks can be detached into several parts and be stacked one by one, also saved space and save freight cost. The glass racks could be used in both the storage and transportation, is the ideal glass racks for different glass factory.
Customized size and design for this detachable glass racks are available.
Parameters
Model | Length×Height×Width | Self-weight | Max Storing Thickness | Max Working Loading Weight |
Detachable glass racks | 1800×1600×900mm | 240KGS | 220mm per Side | 5000KGS |
Hot Tags: Detachable Glass Racks, one stop A-frame, a frame rack, tempered glass rack, insulated glass sortage racks, China, manufacturers, suppliers, factory, customized, price
