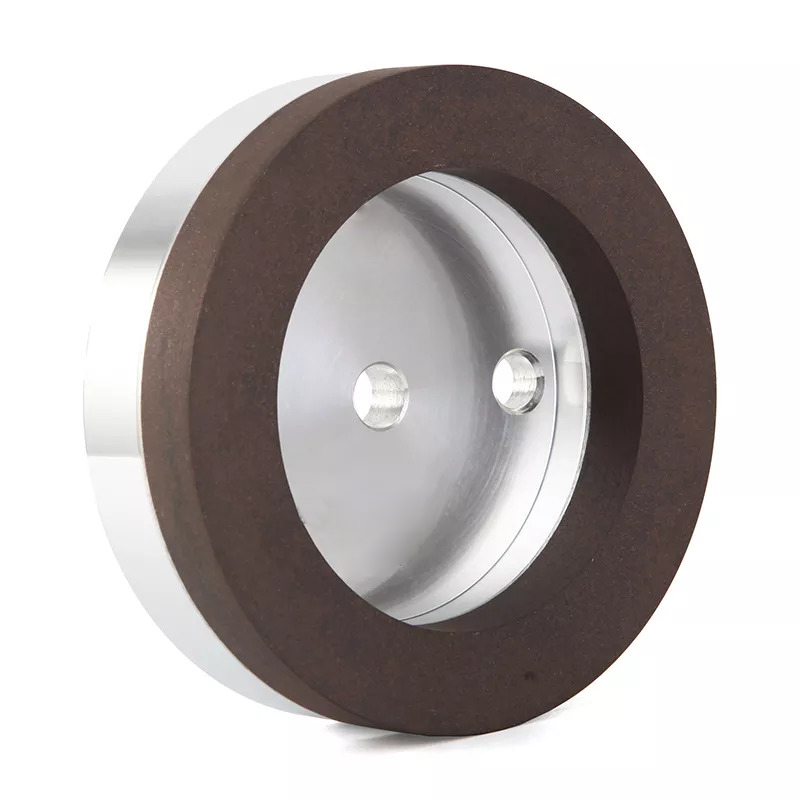

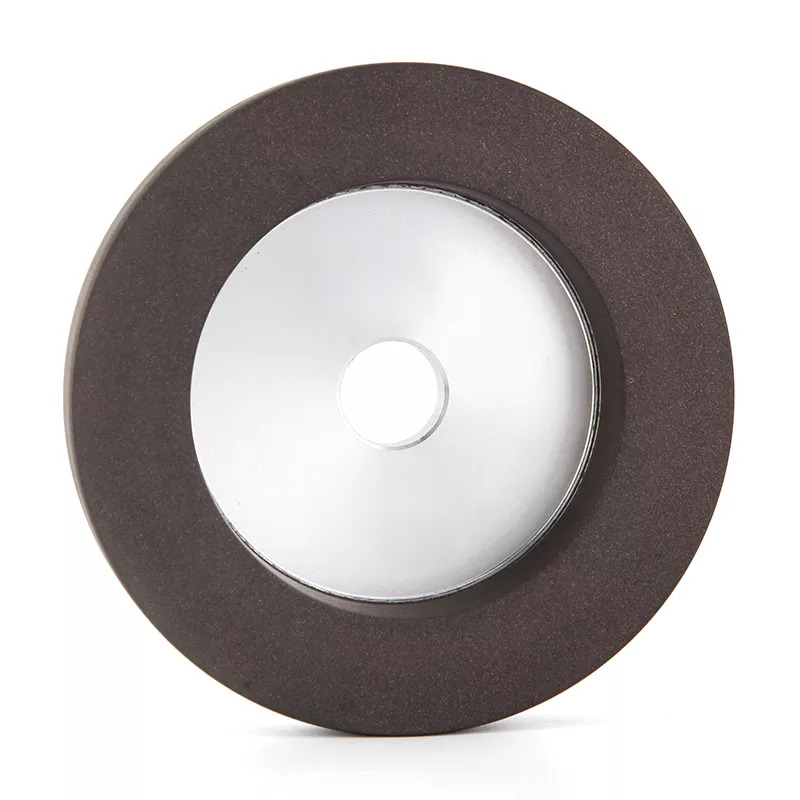

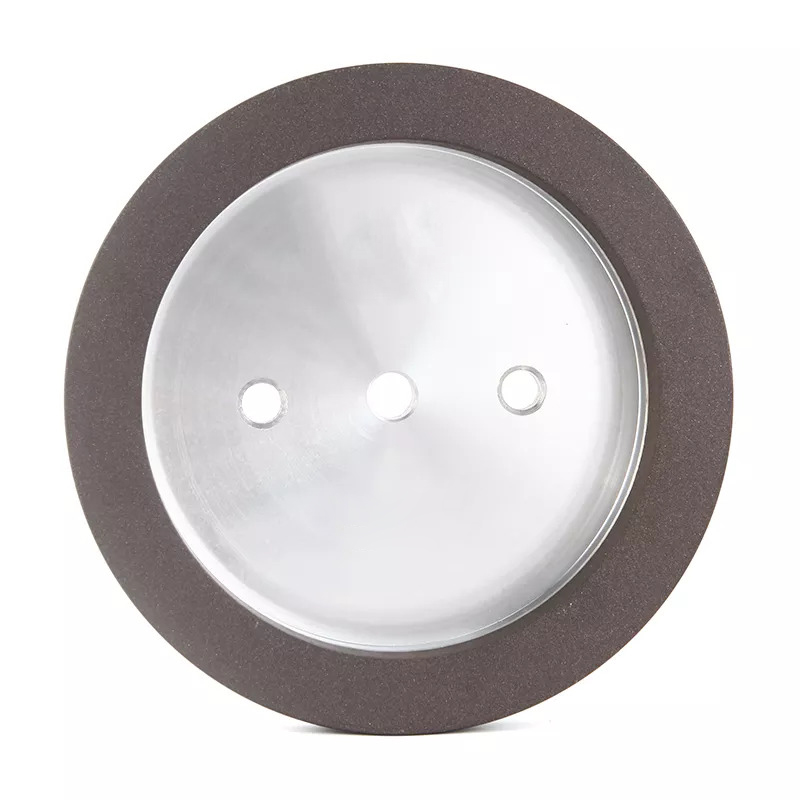

Resin Grinding Wheel
The resin grinding wheel is made of high quality diamond powder and resin binder, It is sintered under high pressure and high temperature. The resin bond grinding wheels have high grinding performance with longer service life.
The resin bond grinding wheel have high self-sharpening. The sharp grinding edge will be re-exposed during the grinding process, then the wheel could maintain sharp and provide long life service.
The resin wheels can improve the glass surface roughness with its’ certain elasticity, can grind the glass with high precision. No grinding lines will be left on the glass, have superior grain removal effect.
The resin wheels have high wear resistance. The consumption of the abrasive materials is relatively lower than other grinding wheels, the resin bond diamond grinding wheel can save costs for the deep processed glass factory.
The heat in the grinding process is lower, could protect the glass from burning and exploding. After grinding, the glass surface is good with high precision, greatly improved the glass product quality and production efficiency.
This resin diamond grinding wheel can grind the glass thickness from 3mm to 25mm. Now the resin bond diamond wheels have been widely used different glass, such as the furniture glass, automotive glass, home appliance glass, construction glass and so on.
This diamond resin wheels mainly used in the glass straight edging machine and glass double edging machine. The resin filled cup wheel could be used together with the followed wheels, to make the glass products more beautiful. Such as continuous diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel, CE-3 polishing wheel, X5000 polishing wheel and so on.
This resin bond grinding wheels can be custom made to different drawings, various samples, different size.
Parameters
Diameter | Φ175 ,Φ150,Φ130,Φ100 |
Hole Size | 12,22,25,50 |
Working Rim Size | 10×12，15×12，20×15 |
Granularity | 60#～320# |
Raw Materials | High Quality Diamond and Resin Binder |
