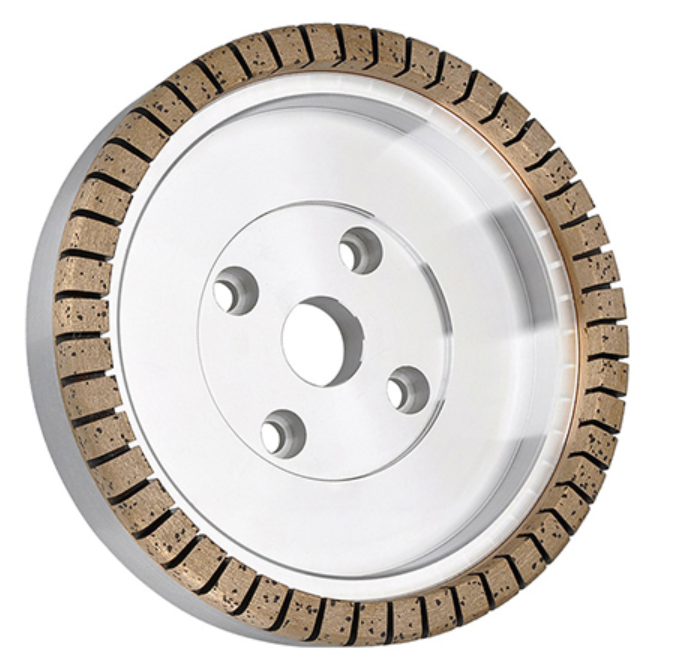

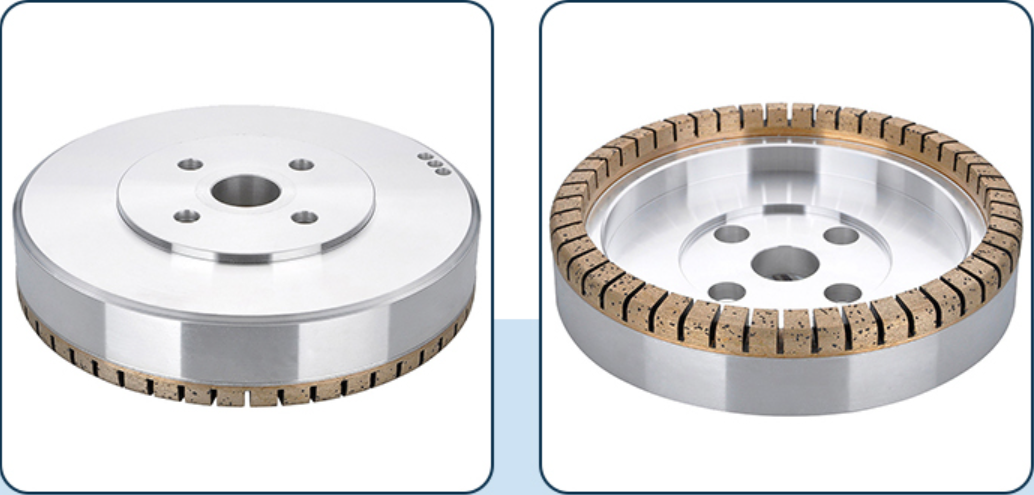

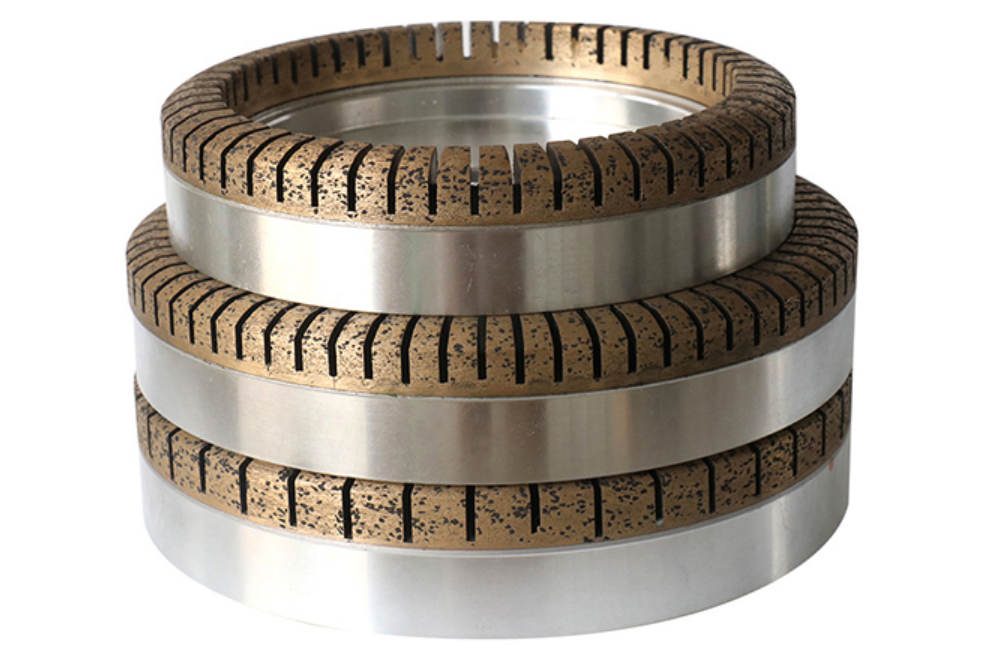

Full Segmented Diamond Wheel
The full segmented diamond wheel is made from high quality diamond, metal bonded and aluminum alloy substrate, after the sintering process under high temperature and high pressure, its’ appearance featured by the jagged edge.
The advantage of this diamond grinding disc is that the dentiform working layer can provide space for the chip removal and drainage, to reduce the temperature on the working surface, then could avoid collapse edge for grinding glass, can protect the glass against burns, explodes, heat and so on.
The cup grinding wheel have good sharpness, the grinding efficiency is superior. After the grinding, the glass products can keep good shape for long time.
The wear resistance of this diamond cup grinding wheel is high, but the consumption of abrasive grain is small, then the grinder disc could maintain long time sharpness.
The grinding for the glass surface is good with high precision. Not only improved the grinding efficiency, but also saved the cost and labor for the glass factory, is the ideal grinding tolls.
This diamond disk grinder is mainly used in the glass straight edging machine and glass double edging machine, both the 1# and 2# grinding position can be installed. This diamond grinding wheels for bench grinder is suitable for the glass thickness from 3mm to 25mm, and mainly used for the architecture glass, furniture glass, appliance glass and so on, such as partition glass, bathroom glass, glass table tops, etc.
This full segmented diamond grinding wheel can be custom made according different drawings, various samples, different size and grits, to satisfy your requirements on the grinding.
Parameters
Diameter | Φ220,Φ175 ,Φ150 |
Hole Size | 12,22,25,32,50,70 |
Working Rim Size | 15×8，15×10 |
Granularity | 60#～320# |
Product Technique | Sintered |
Raw Materials | Aluminum Alloy Substrate, Emery, Metal Powder Binder |
Hot Tags: full segmented diamond wheel, glass edging wheel, cup wheel, diamond cup grinding wheel, wheel buffer, 10 inch diamond grinding wheel, China, manufacturers, suppliers, factory, customized, price
