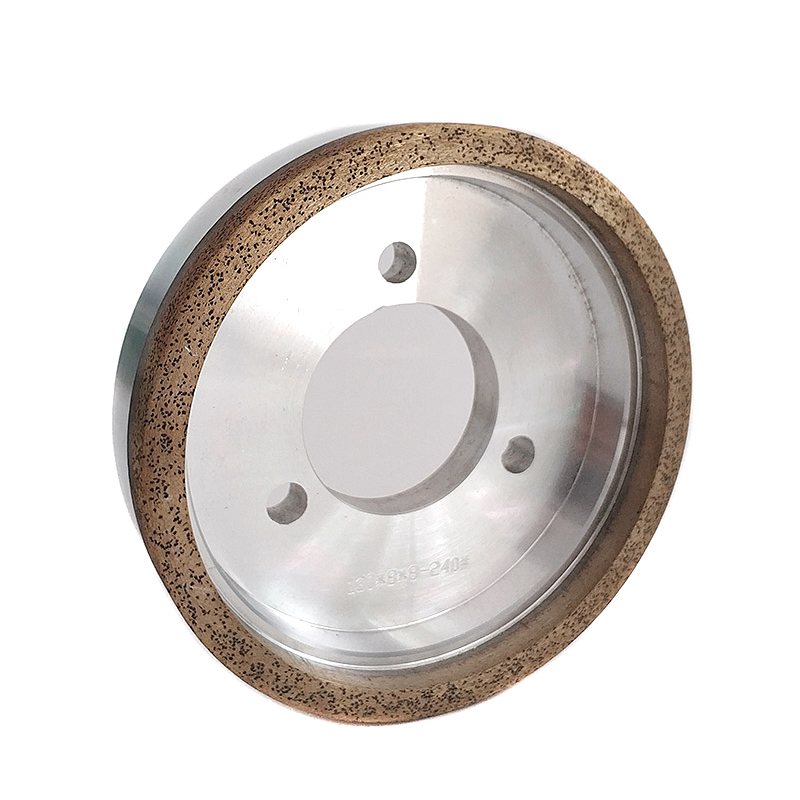

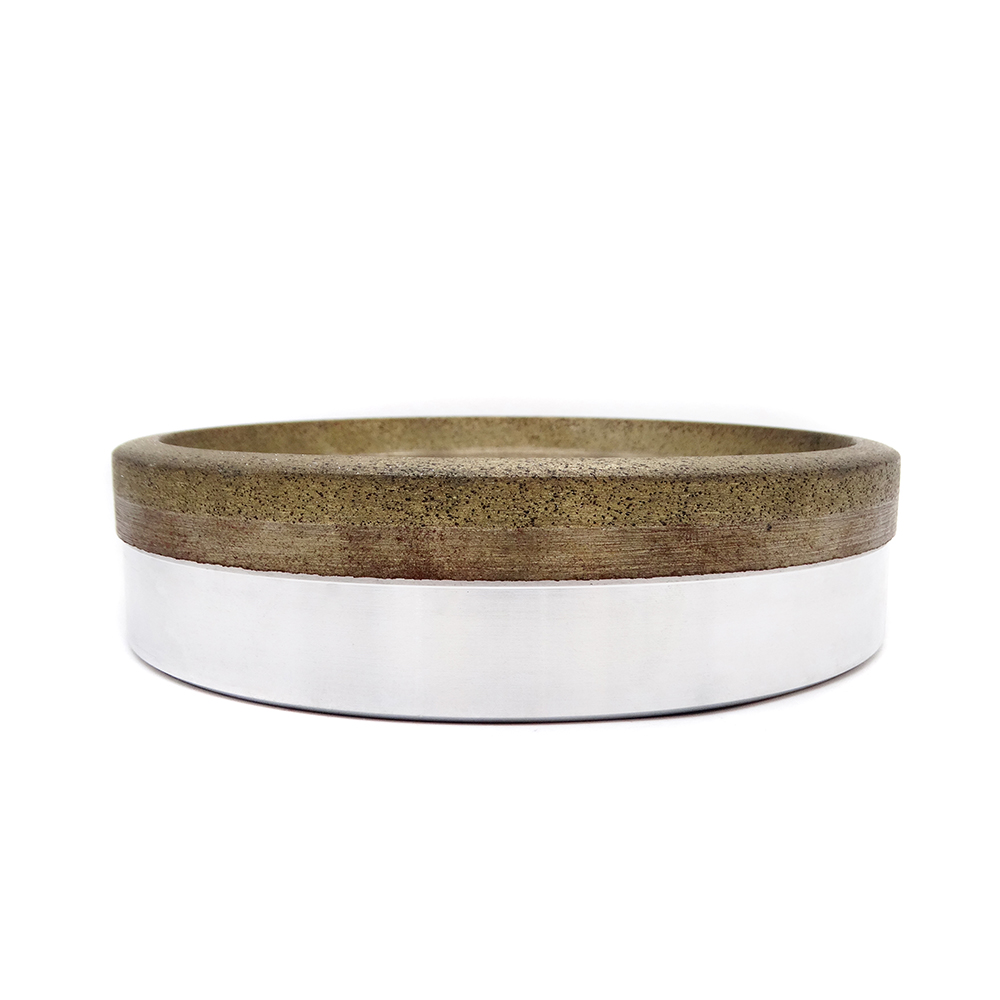

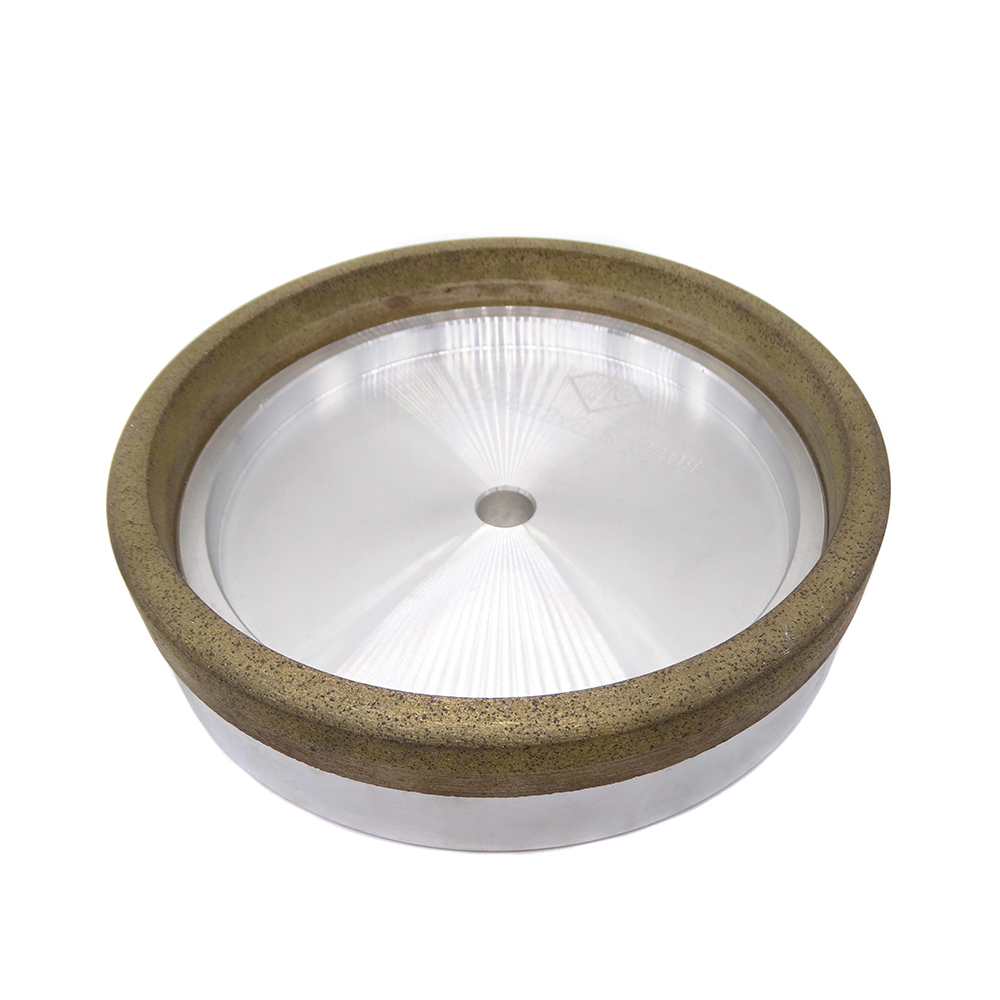

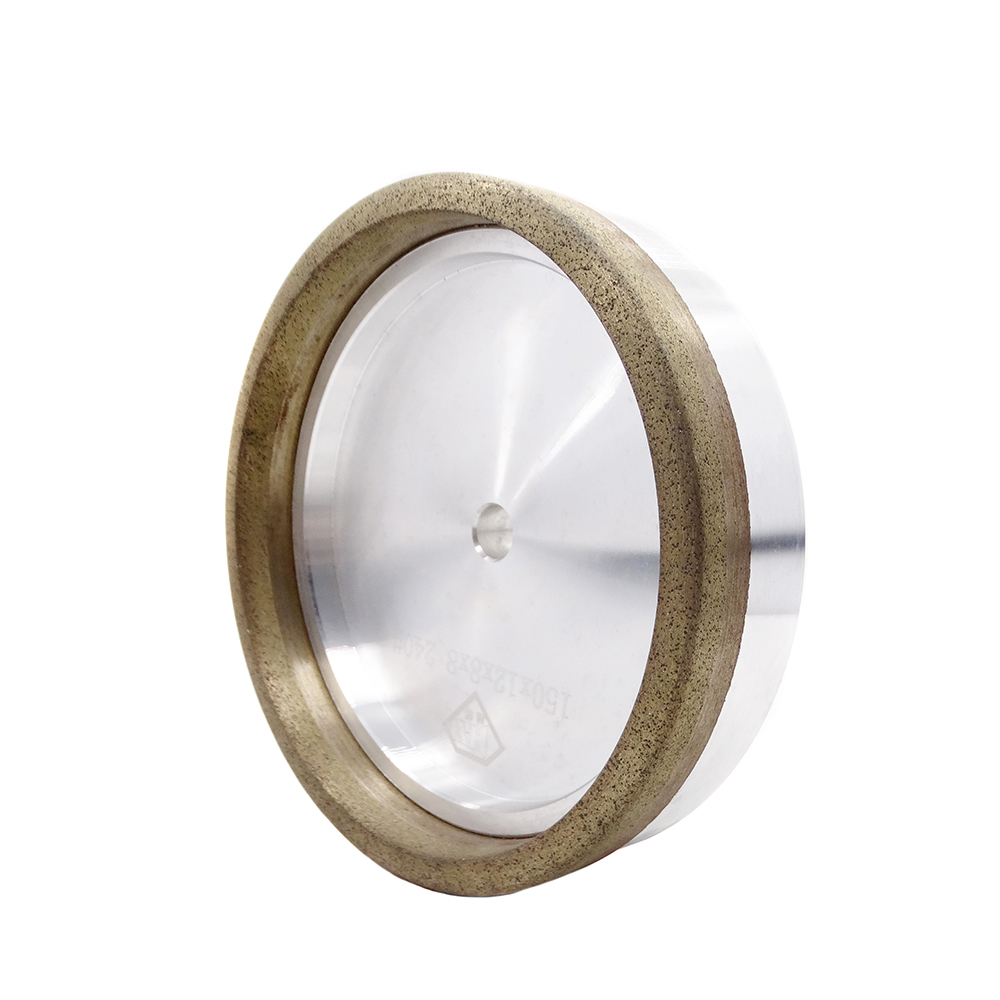

Continuous Diamond Wheel

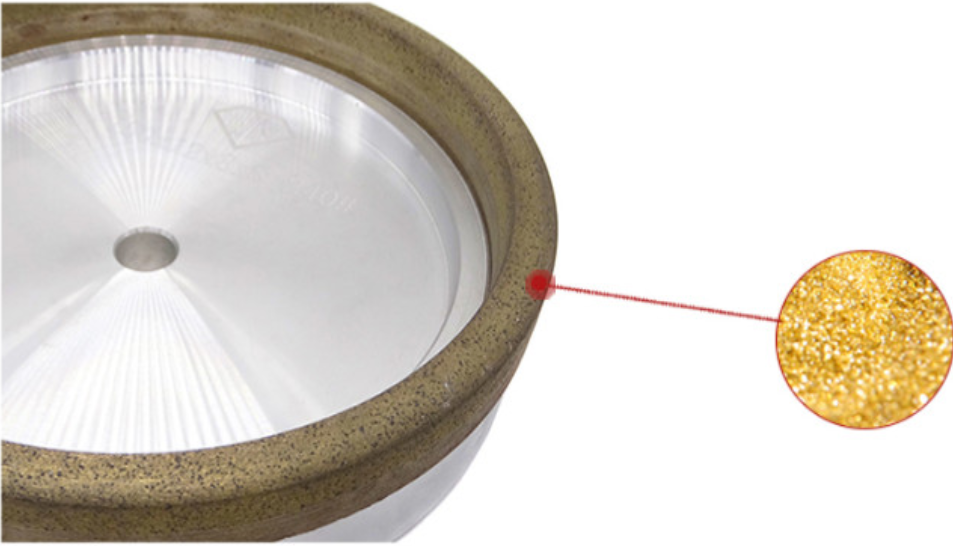

The continuous diamond wheel, is also called non-segmented diamond grinding wheel. It is made from high quality metal powder and synthetic diamond grits. Under high pressure and high temperature, after sintered process, the sintered diamond wheels have good sharpness and superior grinding ability.
The diamond cup grinding disc have good wear resistance. After the sintering process under high pressure and high temperature, it can ensure the grinding distance around 10000m ~ 15000m, could provide longer service life with lower grinding noise.
The diamond grinding disc have fast and smooth working speed, the grinding performance is stable. There is no scratches nor burns on glass edges after grinding by this cup wheel grinding disc.
The continuous diamond wheels have been widely used for glass rough grinding and medium grinding, is the ideal choice in the glass deep process. It is used on the glass straight edging machine and glass double edging machine, when located on the 1# ,2# grinding motor, it is mainly used for grinding, if located on the 3# ,4# grinding motor, it is mainly used for chamfering. The glass thickness from 3mm to 25mm is suitable for the continuous rim diamond blade. Different glass products, such as furniture glass, automotive glass, home appliance glass, construction glass, can be ground by this diamond grinding wheel.
The continuous diamond wheel can be used together with other different wheels, such as the diamond pencil edge grinding wheel, resin diamond grinding wheel, X5000 polishing wheel,10S polishing wheel, CE-3 polishing wheel and so on. This glass edging Wheel is also customized according different drawings, various samples, different size and grits.
Parameters
Diameter | Φ175 ,Φ150,Φ130 |
Hole Size | 12,22,50,70 |
Working Rim Size | 8×8，8×10，10×10 |
Granularity | 60#～320# |
Product Technique | Sintered |
Raw Materials | Aluminum Alloy Substrate, Emery, Metal Powder Binder |
Hot Tags: continuous diamond wheel, diamond grinding wheel, grinding diamond, 110mm continuous rim diamond blade, metal buffing wheel, bench polishing wheel, China, manufacturers, suppliers, factory, customized, price
