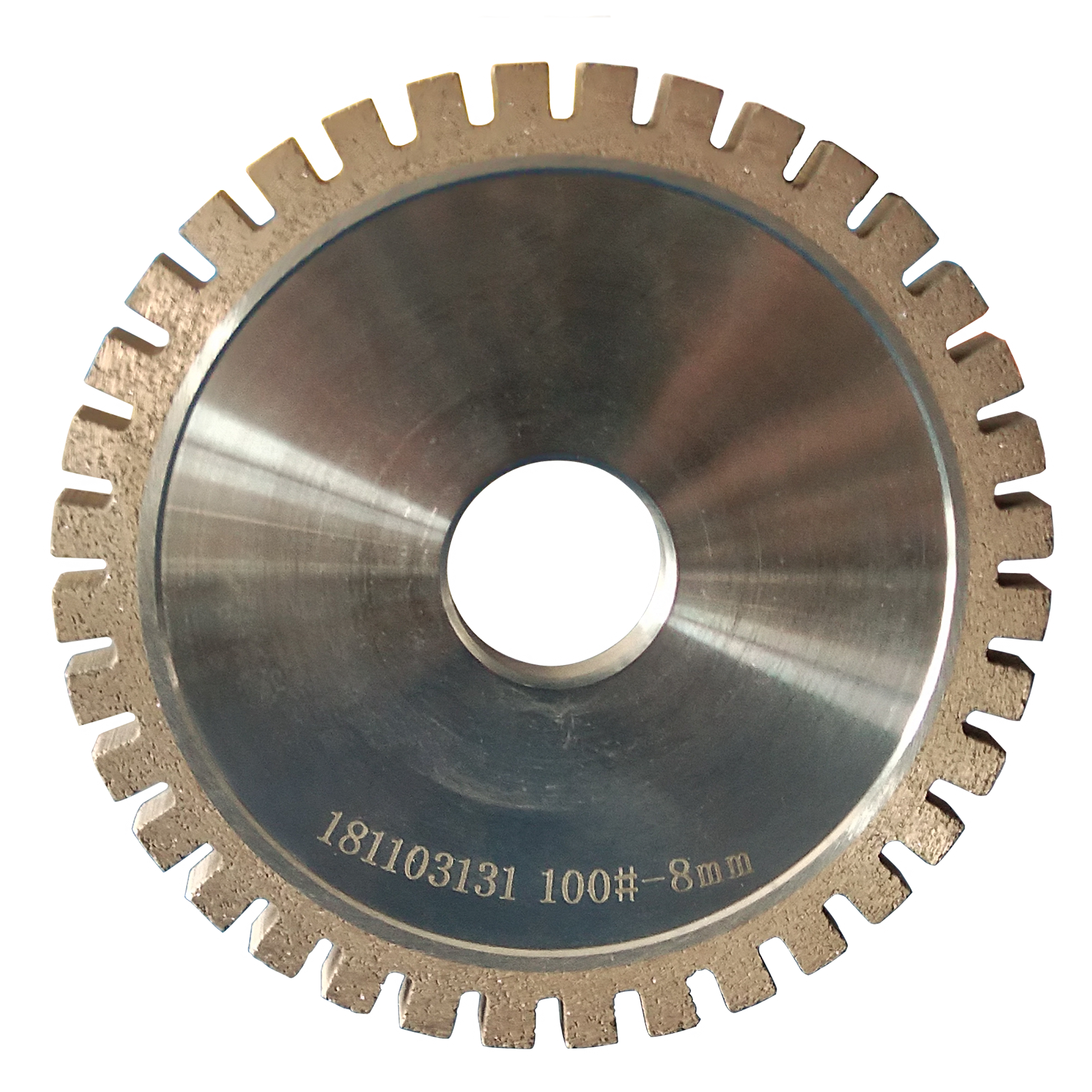

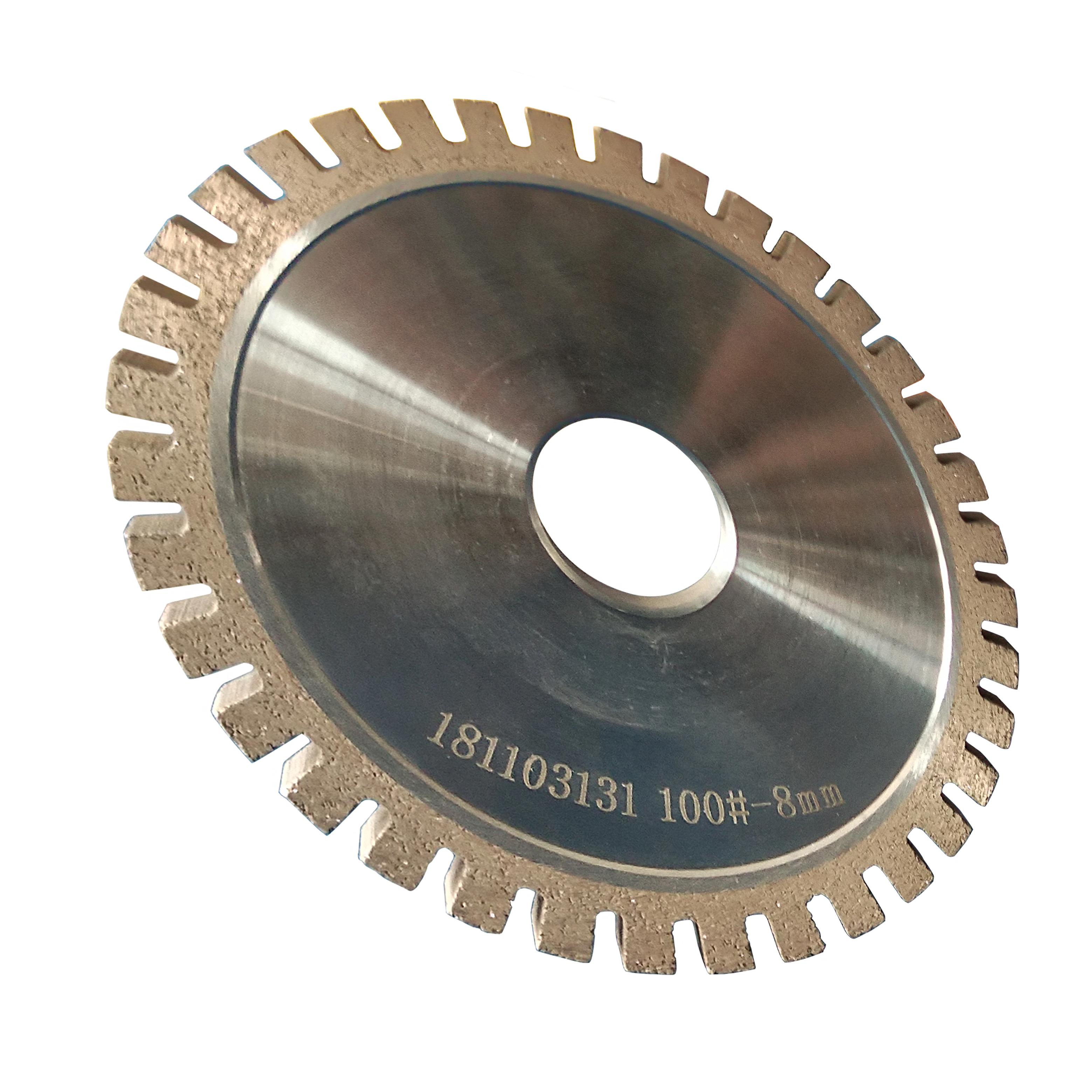

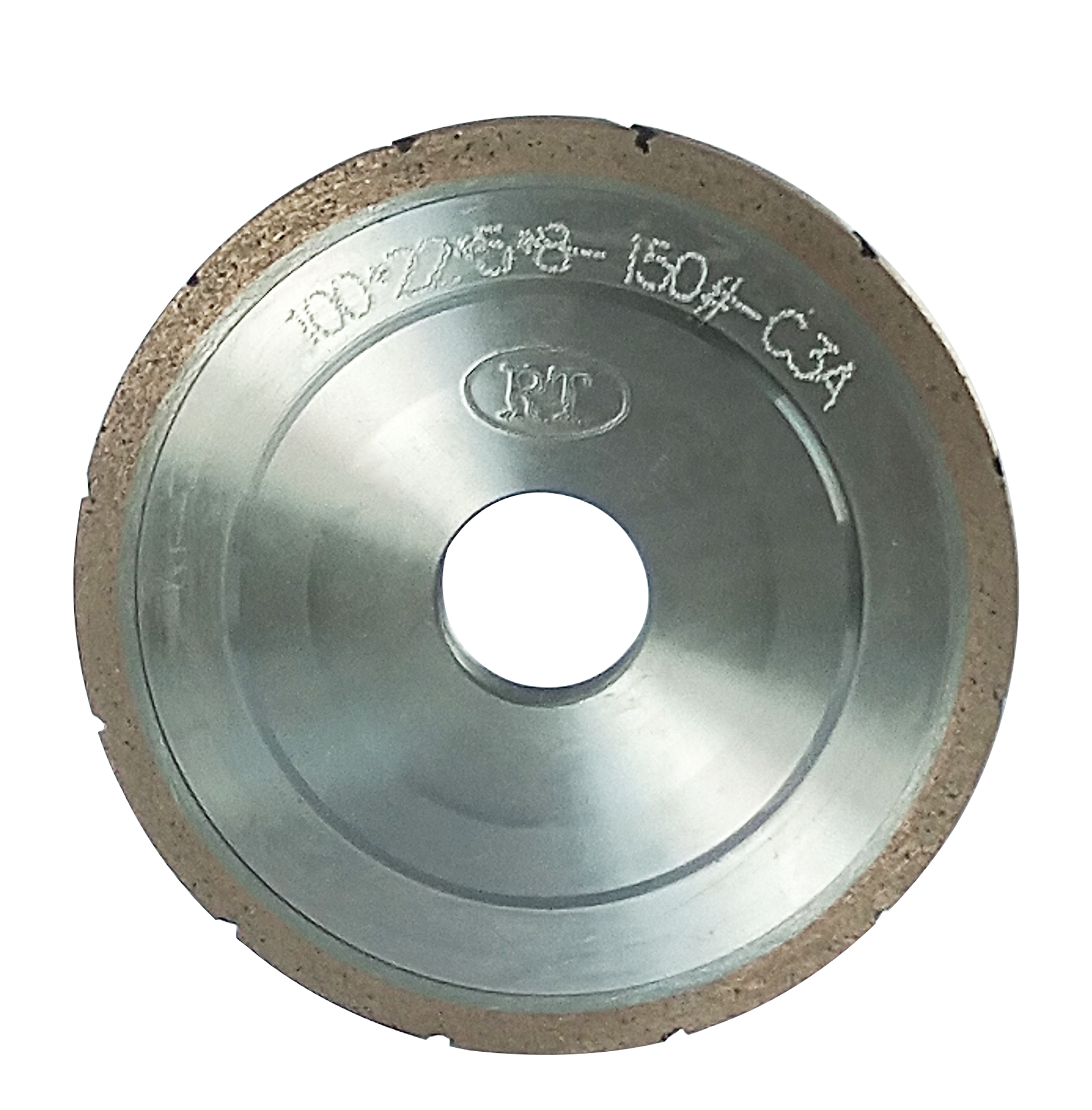

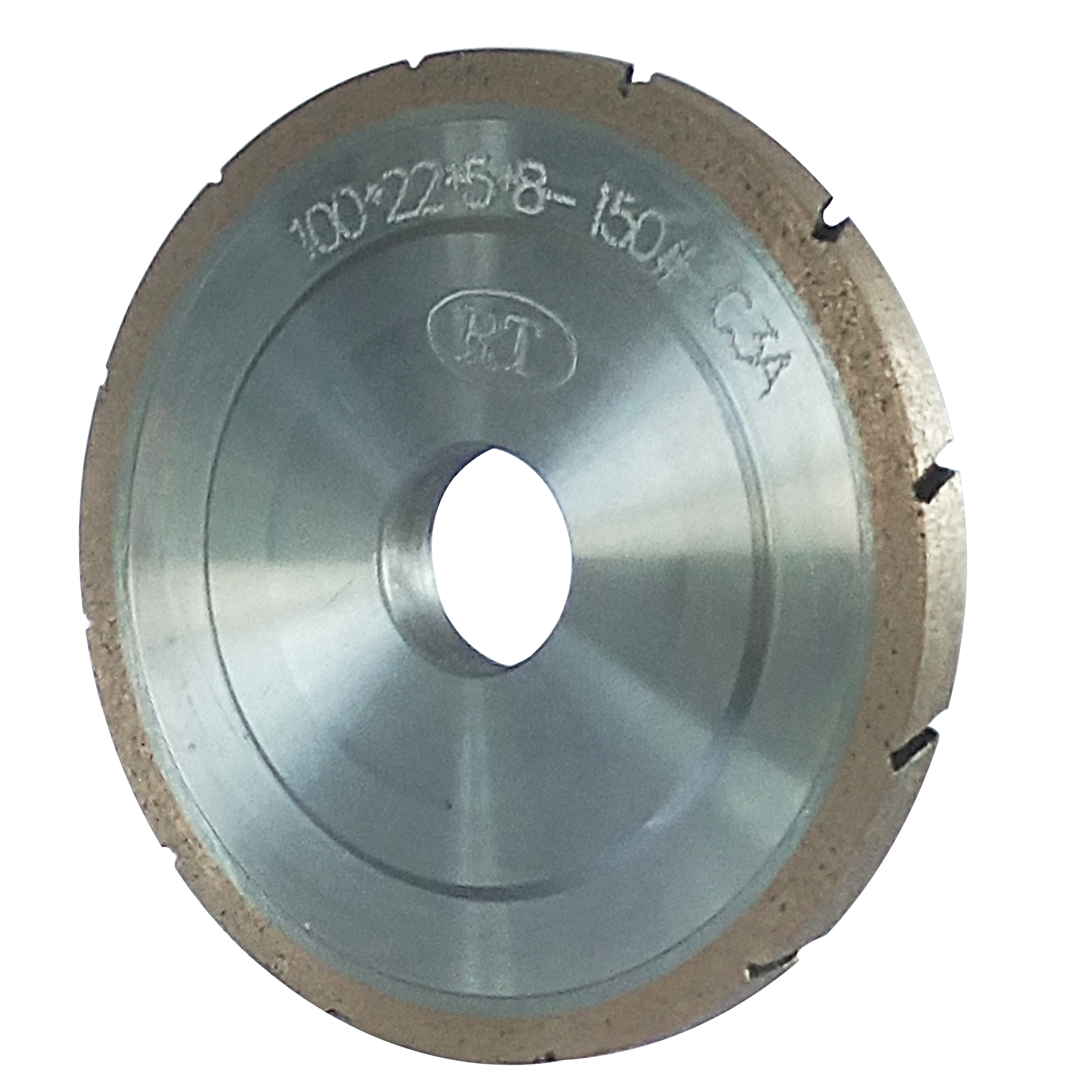

Parallel Diamond Glass Grinding Wheel
The parallel diamond glass grinding wheel is produced of high quality diamond powder and metal powder, which is sintered in high temperature and high pressure. It is mainly used for the grinding for deep processed glass with good performance.
The wheels have high hardness and strength, could avoid the glass collapse, greatly improve the grinding efficiency. The wheels have high wear resistance. The abrasive grain consumption is small, then the wheels could maintain long service life, reduced the cost. The wheels have good balance, won’t vibrate or shake in the grinding process, the grinding surface is good with high precision, maintain good shape for the workpiece.
This parallel diamond glass grinding wheel can grind the glass with thickness from 3mm to 20mm, its grinding speed is fast, the wire speed is ups to 12m every minute and could be faster if needed. Now it is mainly used in the CNC machining center, shaped glass edging machine, glass chamfering machine and so on. And different kinds of glass is suitable for this diamond grinding wheel, such as furniture glass, bathroom glass, table top glass, glass used in partition, balcony and stairs, home appliance glass, construction glass and so on.
The parallel diamond glass grinding wheel can be used together with other wheels, to make the glossy glass surface. such as full segmented resin wheel, 10S polishing wheel, CE-3 polishing wheel,X5000 polishing wheel, spiral wool felt polishing wheel and so on. In the polishing process, the workers need to keep stable and appropriate polishing speed, to ensure the security.
The parallel diamond glass grinding wheel can be custom made according different parameters and different requirements.
Parameters
Diameter | Φ200,Φ175 ,Φ150,Φ100 |
Hole Size | 12,22,50 |
Suitable Glass Thickness | 3mm～19mm |
Granularity | 60#～320# |
Raw Materials | Aluminum Alloy Substrate, Emery, Metal Powder Binder |
Hot Tags: Parallel Diamond Glass Grinding Wheel, cup wheel grinding disc, 3 inch diamond grinding wheel, diamond coated grinding wheel, 7 inch buffing wheel, China, manufacturers, suppliers, factory, customized, price
Parallel Diamond Glass Grinding Wheel
The parallel diamond glass grinding wheel is produced of high quality diamond powder and metal powder, which is sintered in high temperature and high pressure. It is mainly used for the grinding for deep processed glass with good performance.
The wheels have high hardness and strength, could avoid the glass collapse, greatly improve the grinding efficiency. The wheels have high wear resistance. The abrasive grain consumption is small, then the wheels could maintain long service life, reduced the cost. The wheels have good balance, won’t vibrate or shake in the grinding process, the grinding surface is good with high precision, maintain good shape for the workpiece.
This parallel diamond glass grinding wheel can grind the glass with thickness from 3mm to 20mm, its grinding speed is fast, the wire speed is ups to 12m every minute and could be faster if needed. Now it is mainly used in the CNC machining center, shaped glass edging machine, glass chamfering machine and so on. And different kinds of glass is suitable for this diamond grinding wheel, such as furniture glass, bathroom glass, table top glass, glass used in partition, balcony and stairs, home appliance glass, construction glass and so on.
The parallel diamond glass grinding wheel can be used together with other wheels, to make the glossy glass surface. such as full segmented resin wheel, 10S polishing wheel, CE-3 polishing wheel,X5000 polishing wheel, spiral wool felt polishing wheel and so on. In the polishing process, the workers need to keep stable and appropriate polishing speed, to ensure the security.
The parallel diamond glass grinding wheel can be custom made according different parameters and different requirements.
Parameters
Diameter | Φ200,Φ175 ,Φ150,Φ100 |
Hole Size | 12,22,50 |
Suitable Glass Thickness | 3mm～19mm |
Granularity | 60#～320# |
Raw Materials | Aluminum Alloy Substrate, Emery, Metal Powder Binder |
