Milling Cutter

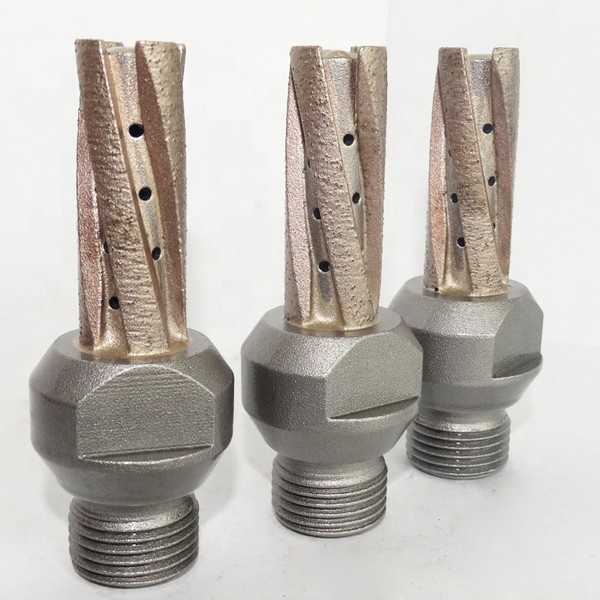

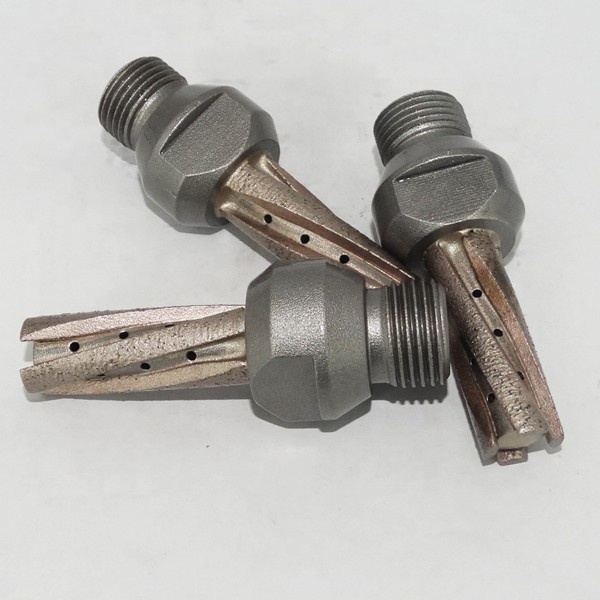

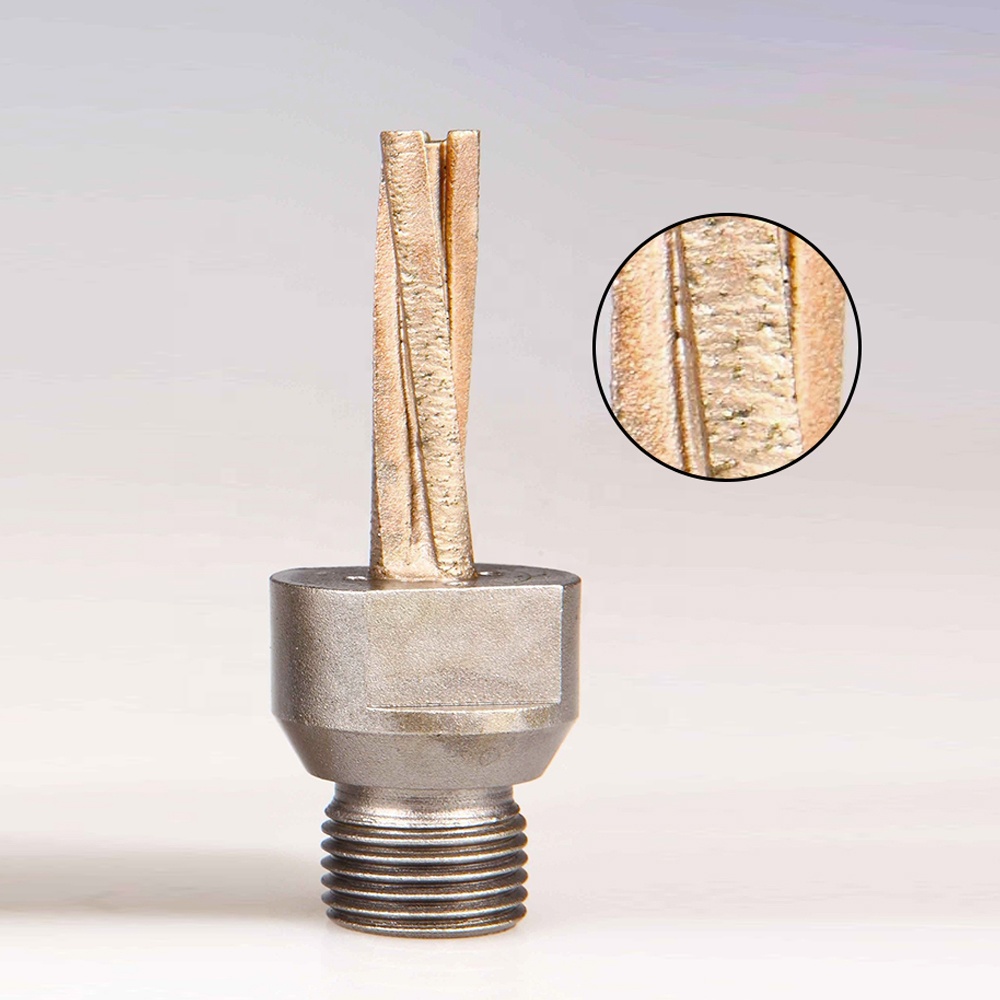

The milling cutter is made of high quality synthetic diamond grits and premium metal powder, sintered in the high pressure and high temperature, mainly used on the CNC machine to cut and make slots on glass.
The diamond end mill have water holes, which can provide space for the chip removal and reduce the high working temperature, this could protect the workpiece against burns and collapse, then the consumption of the cutter head is small, This diamond milling bits can provide long service life with good durability.
The diamond coated end mill have high cutting speed, can finish the cutting process to meet high cutting requirements. Its cutting or drilling process on the CNC machine is according the designs which have been made well in the computer, the using is easy and convenient.
This diamond end mill cutting tools could improve the working efficiency greatly, and changed the working conditions for the workers, the labor intensity also decreased much, then the processing cost for every workpiece lowered, enhanced the competitiveness for the glass factory.
This diamond coated milling cutter is mainly used in the CNC machining center or the automatic drilling machine. Different deep process can be finished by it, such as cutting, drilling slots and holes, milling, grooving. Various type of glass is suit for the diamond milling cutter, such as optical glass, home appliances glass, furniture glass, architecture glass, decorative glass, furniture glass and so on.
The total length of the diamond milling cutter is 80mm, and the shank length is 1/2” or 1/4”. Normally the tooth number is 3, 4 or 5. The diamond milling cutter can be custom made according different size or special requirements.
Parameters
Diameter | 8/10/12/14/16/18/20/22/24/25/26 |
Total Length(mm) | 80 |
Shank Length(Inch) | 1/2”, 1/4” |
Number of Tooth | 3/4/5 |
Raw Materials | Metal Powder and synthetic diamond grits |
Hot Tags: Milling Cutter, diamond end mill, diamond coated end mill, diamond milling bits, diamond coated milling cutter, diamond milling cutter, diamond end mill cutting tools, China, manufacturers, suppliers, factory, customized, price
Milling Cutter
The milling cutter is made of high quality synthetic diamond grits and premium metal powder, sintered in the high pressure and high temperature, mainly used on the CNC machine to cut and make slots on glass.
The diamond end mill have water holes, which can provide space for the chip removal and reduce the high working temperature, this could protect the workpiece against burns and collapse, then the consumption of the cutter head is small, This diamond milling bits can provide long service life with good durability.
The diamond coated end mill have high cutting speed, can finish the cutting process to meet high cutting requirements. Its cutting or drilling process on the CNC machine is according the designs which have been made well in the computer, the using is easy and convenient.
This diamond end mill cutting tools could improve the working efficiency greatly, and changed the working conditions for the workers, the labor intensity also decreased much, then the processing cost for every workpiece lowered, enhanced the competitiveness for the glass factory.
This diamond coated milling cutter is mainly used in the CNC machining center or the automatic drilling machine. Different deep process can be finished by it, such as cutting, drilling slots and holes, milling, grooving. Various type of glass is suit for the diamond milling cutter, such as optical glass, home appliances glass, furniture glass, architecture glass, decorative glass, furniture glass and so on.
The total length of the diamond milling cutter is 80mm, and the shank length is 1/2” or 1/4”. Normally the tooth number is 3, 4 or 5. The diamond milling cutter can be custom made according different size or special requirements.
Parameters
Diameter | 8/10/12/14/16/18/20/22/24/25/26 |
Total Length(mm) | 80 |
Shank Length(Inch) | 1/2”, 1/4” |
Number of Tooth | 3/4/5 |
Raw Materials | Metal Powder and synthetic diamond grits |
