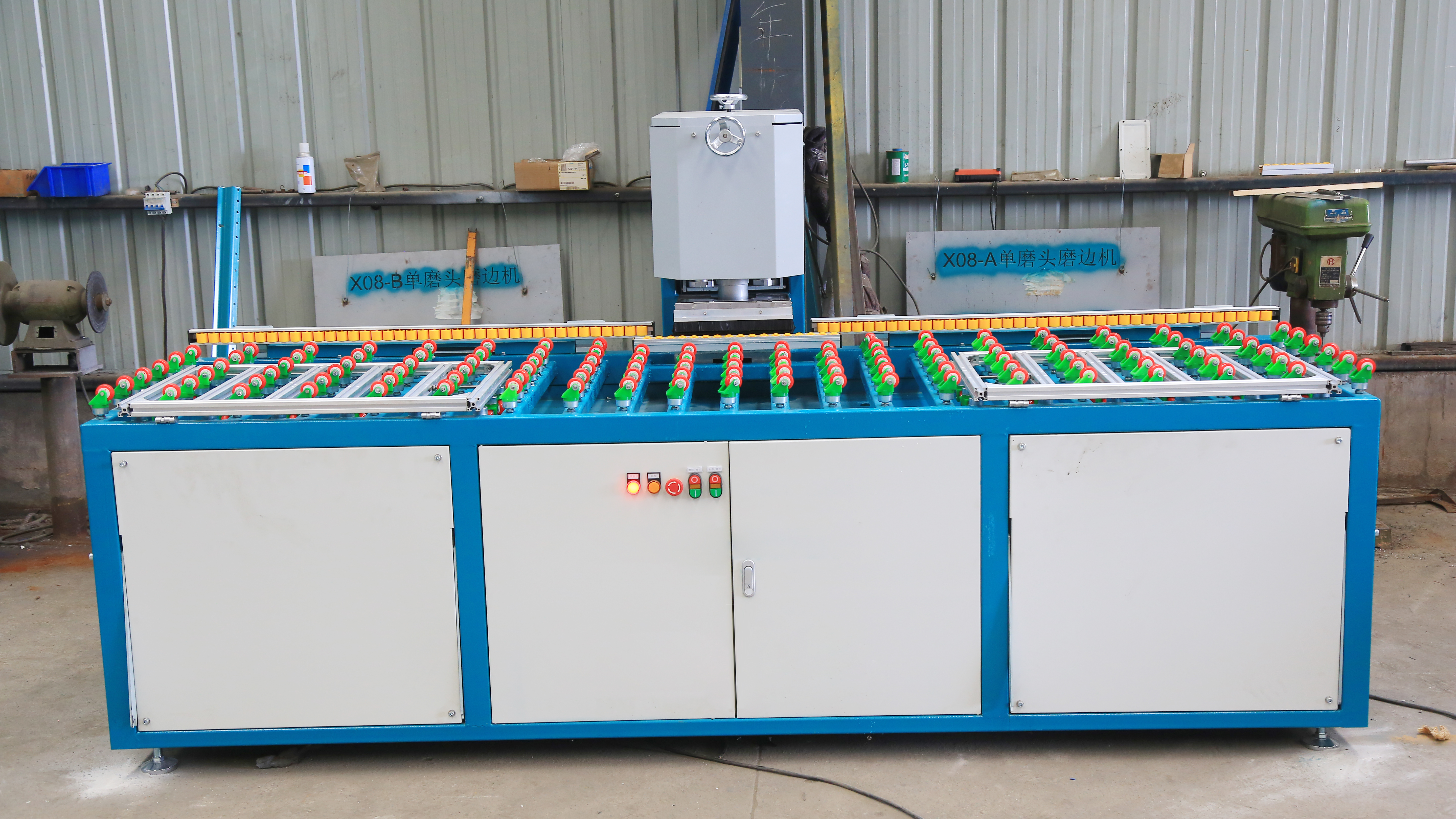

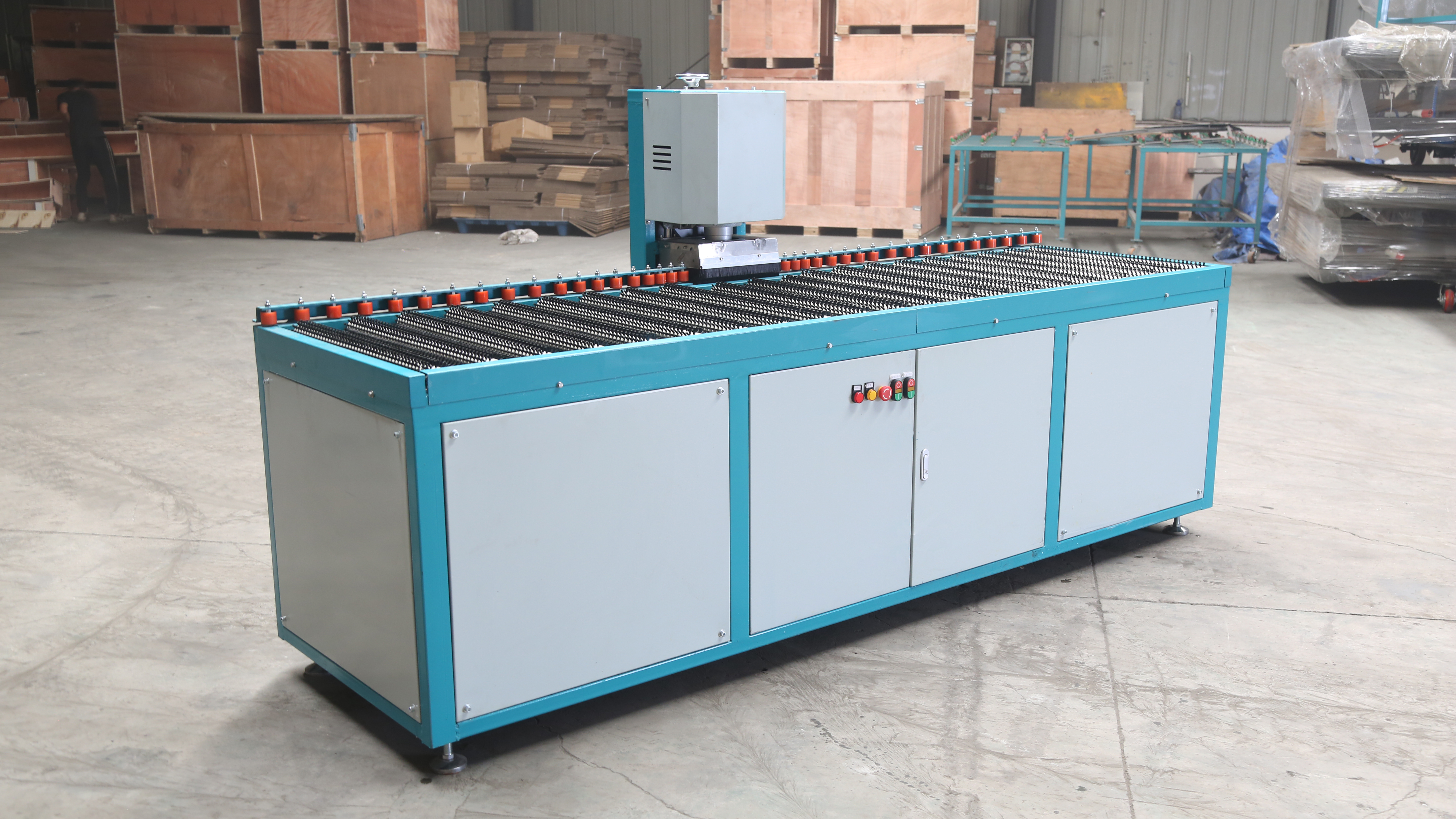

X-08A Multifunctional Edge Grinding Machine
The multifunctional edge grinding machine have better grinding speed, is more suitable for processed glass rounded corner and other special shaped edges, such as straight edges, triangular edges, wavy edges and other shapes.
The workers could load different size glass on the platform continually without manual adjustment and wait. The wash machine can connect with this multifunctional edge grinding machine from front side or side face, make the grinding to washing to be a one-stop process, saved time and manpower, but without any hamper to the normal operation of original equipment.
This machine solved the problems of rough grinding, especially the explosion when put the grinding glass into stove with high temperature, and the secondary chipping scratches. It is the ideal grinding machine for different shapes edges.
The appearance for this edging machine is 2840mm×1250mm×850mm. The multifunctional edge grinding machine can grind glass with thickness from 3mm to 12mm, the maximum grinding size is 2000mm×2000mm, and the minimum grinding size is 280mm×280mm. If need to grind edges with other size, we could also make it according different requirements.
This multifunctional Edge Grinding Machine is reliable and stable with low failure rate in the long service life, and the maintenance is easy. The glass corner grinding machine improved the efficiency greatly, save cost and labor for the glass factory. It can also connect with washing machine to handle the glass further.
Once have mechanical failure during the warranty period, the main components can be changed for free. We also provide 24 hours technical support if needed,, help you to use this machine easily.
Parameters
Appearance Size：2840mm×1250mm×850mm
Power:2.3kw
Adaptive Glass Thickness:3mm～12mm
Maximum Processing Size:2000mm～2000mm
Minimum Processing Size:280mm～280mm
