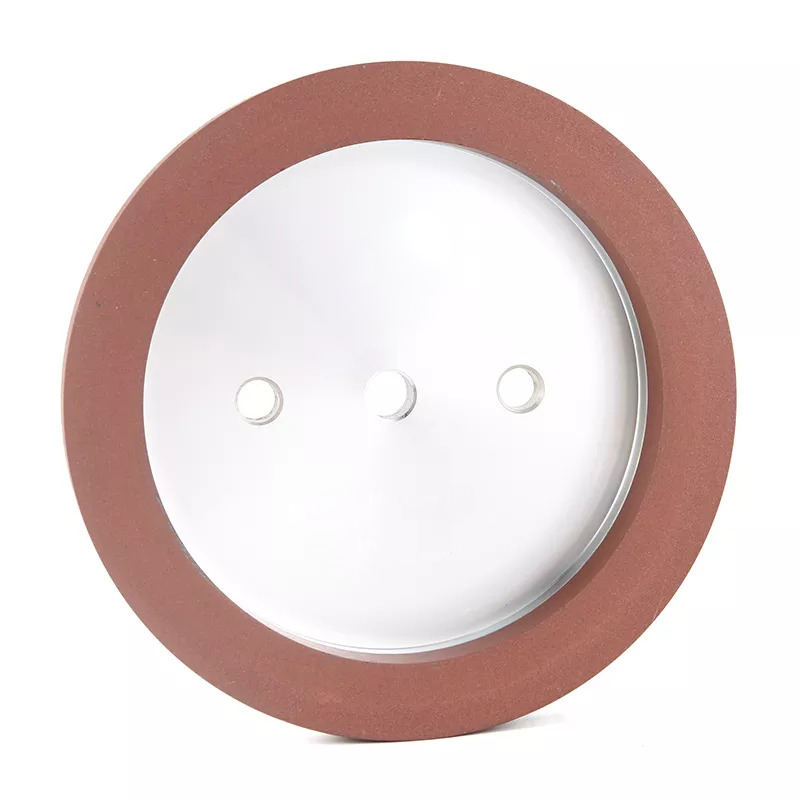

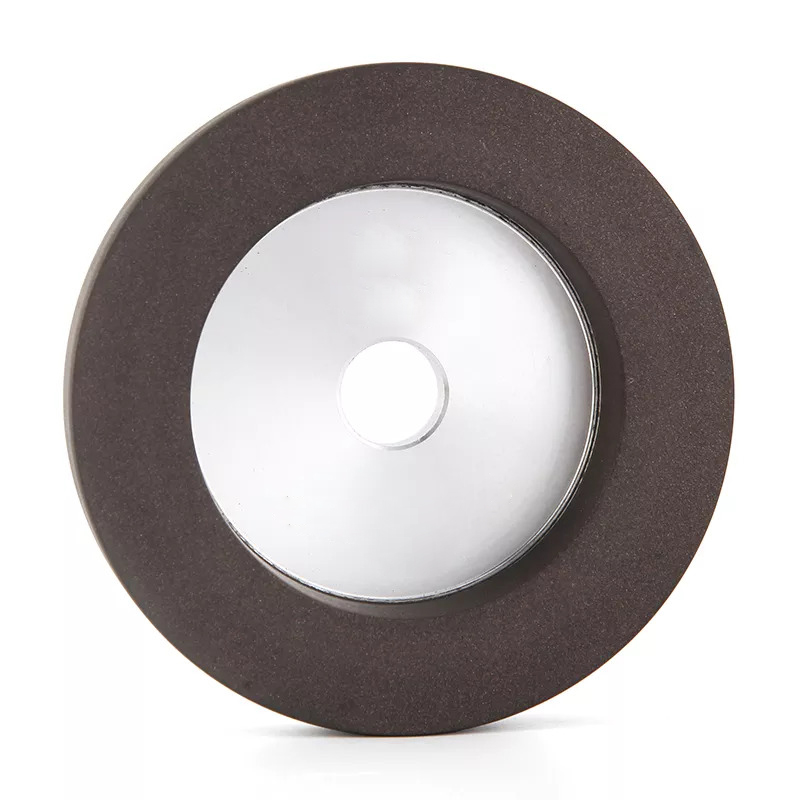

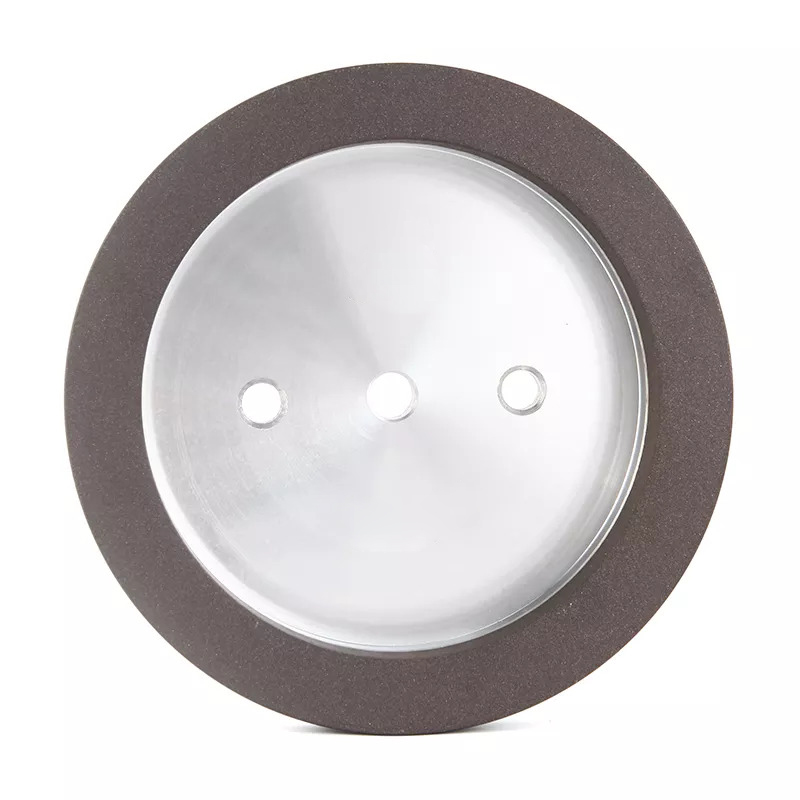

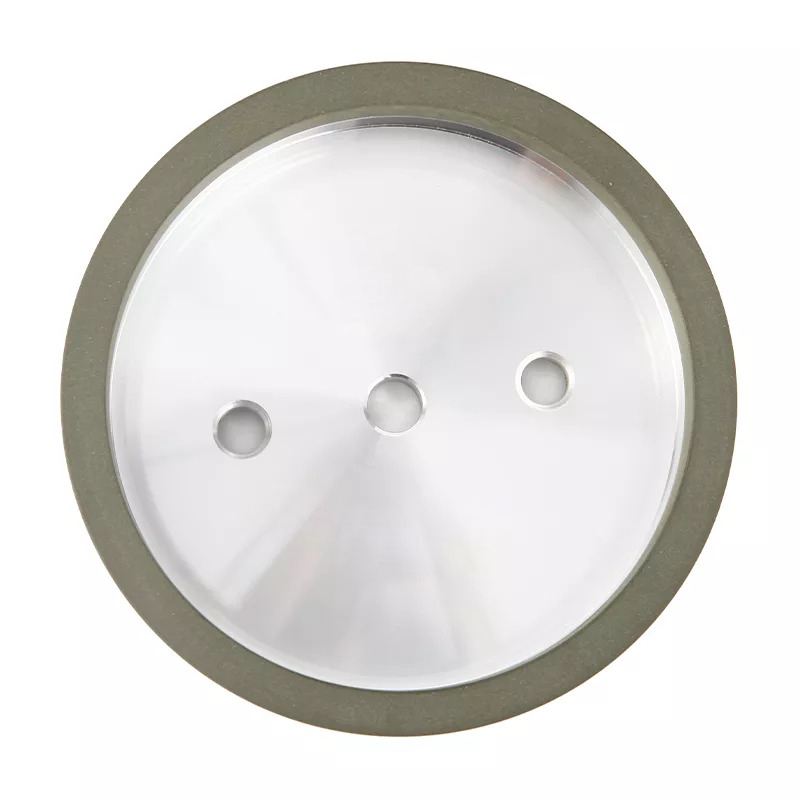

Resin Wheel
The resin bond grinding wheels is made from high-quality diamond and resin bond, under sintered process with high pressure and high temperature, have high wear resistance and long grinding life.
The resin bond diamond wheels have good self-sharpening. The grinding edge will be re-exposed during the grinding process, then the wheel could maintain long-time sharpness.
The resin bond diamond grinding wheel have a certain elasticity, could grind the glass with high precision, to improve the roughness, won’t left any scratches or burns on the glass edge.
The resin bond grinding wheel have good grinding effect on removing the texture on glass surface. Have high grinding efficiency without collapse edge for glass.
This resin diamond grinding wheel can grind the glass with different thickness, from 3mm to 25mm, it is suitable.Now the resin cup wheel have been widely used for the the furniture glass and architecture glass, such as the glass in windows and doors,glass in office partition wall , table top glass, bathroom glass and so on.
This diamond resin grinding wheel mainly used in the glass straight edging machine and glass double edging machine. And it is mainly located at the 2# or 3# grinding motor for the medium grinding process or chamfering process. The resin filled cup wheel could be used together with the followed wheels, to make the glass products more beautiful. Such as continuous diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel, CE-3 polishing wheel, X5000 polishing wheel and so on.
This resin bond grinding wheels can be custom made to meet different requirements.
Parameters
Diameter | Φ175 ,Φ150, Φ130,Φ100 |
Hole Size | 12,22,50,70 |
Working Rim Size | 10×10，15×10，15×15，20×10 |
Granularity | 180#～320# |
Abrasive Material | Diamond |
Bond Material | Resin and Metal |
