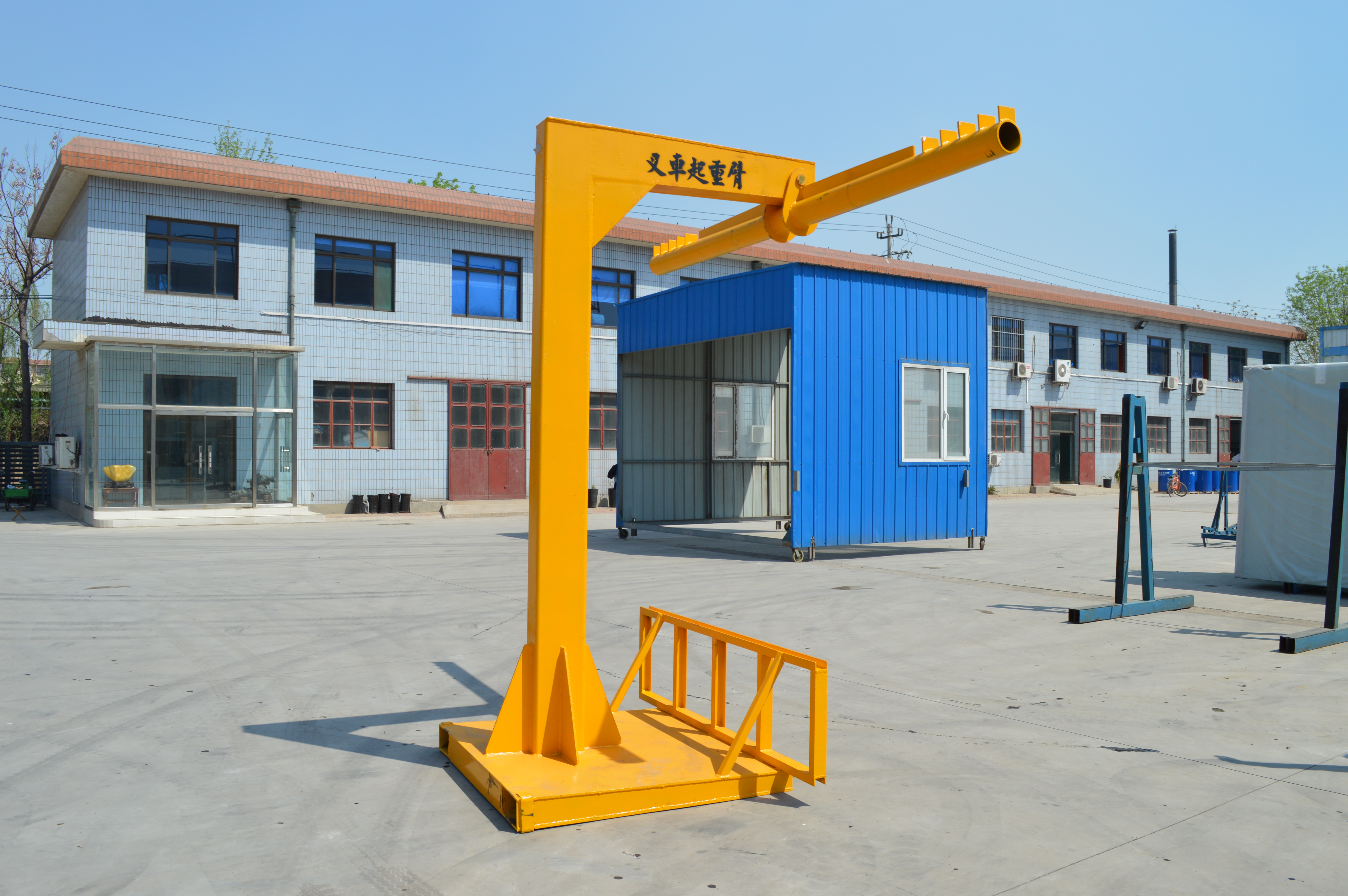

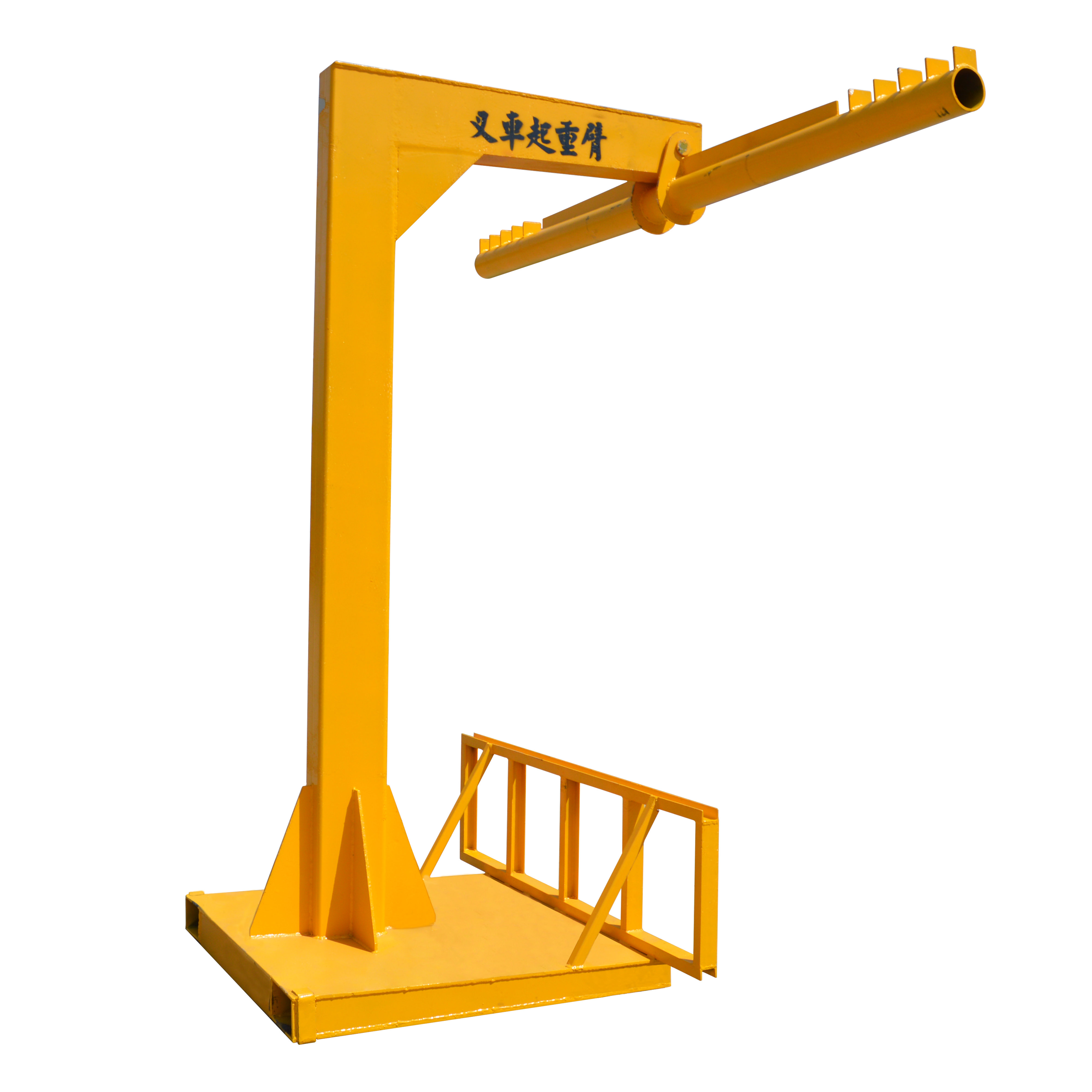

Forklift Truck Crane Arm with Pedestal
For the glass factory which need the jib boom forklift attachment frequently, to disassemble the fork mounted jib will waste much time. Based on this, we specially designed the forklift truck crane arm with pedestal. No need to dismantle the fork frequently, just insert the base directly, the fork would stay closely in the base frame. It could move long distance and keep stable without any help.
The height for this jib boom forklift attachment is 2700mm, and the arm length is 1450mm. The size of the pedestal is 1300mm×1300mm. To ensure the safety, we added the blocking plate above the base. Then the glass plate won’t move forward or backward in the lifting process, could protect the glass well against any impact. The forklift extension boom have smooth appearance which is well painted, which can resist the rust.

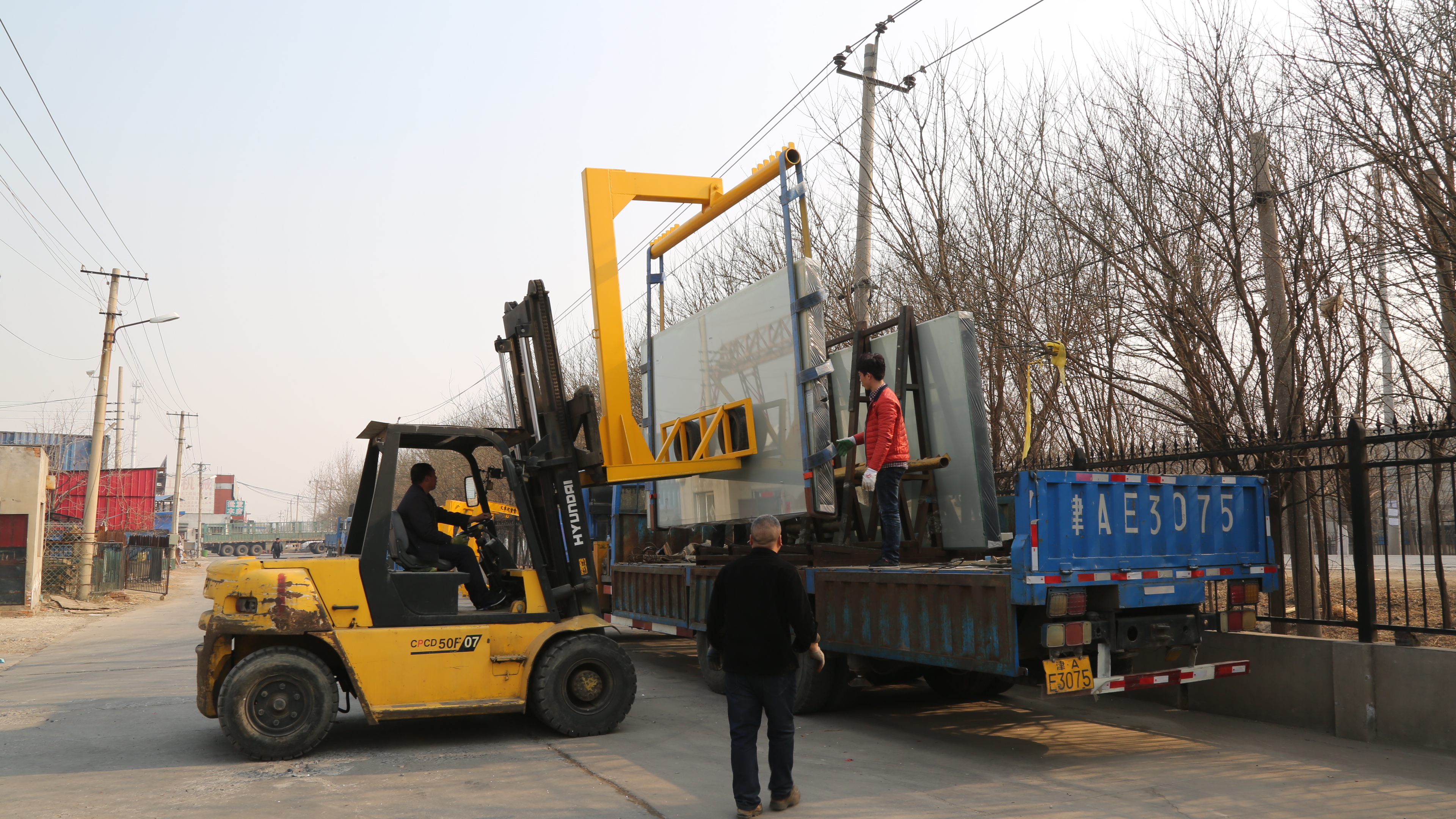

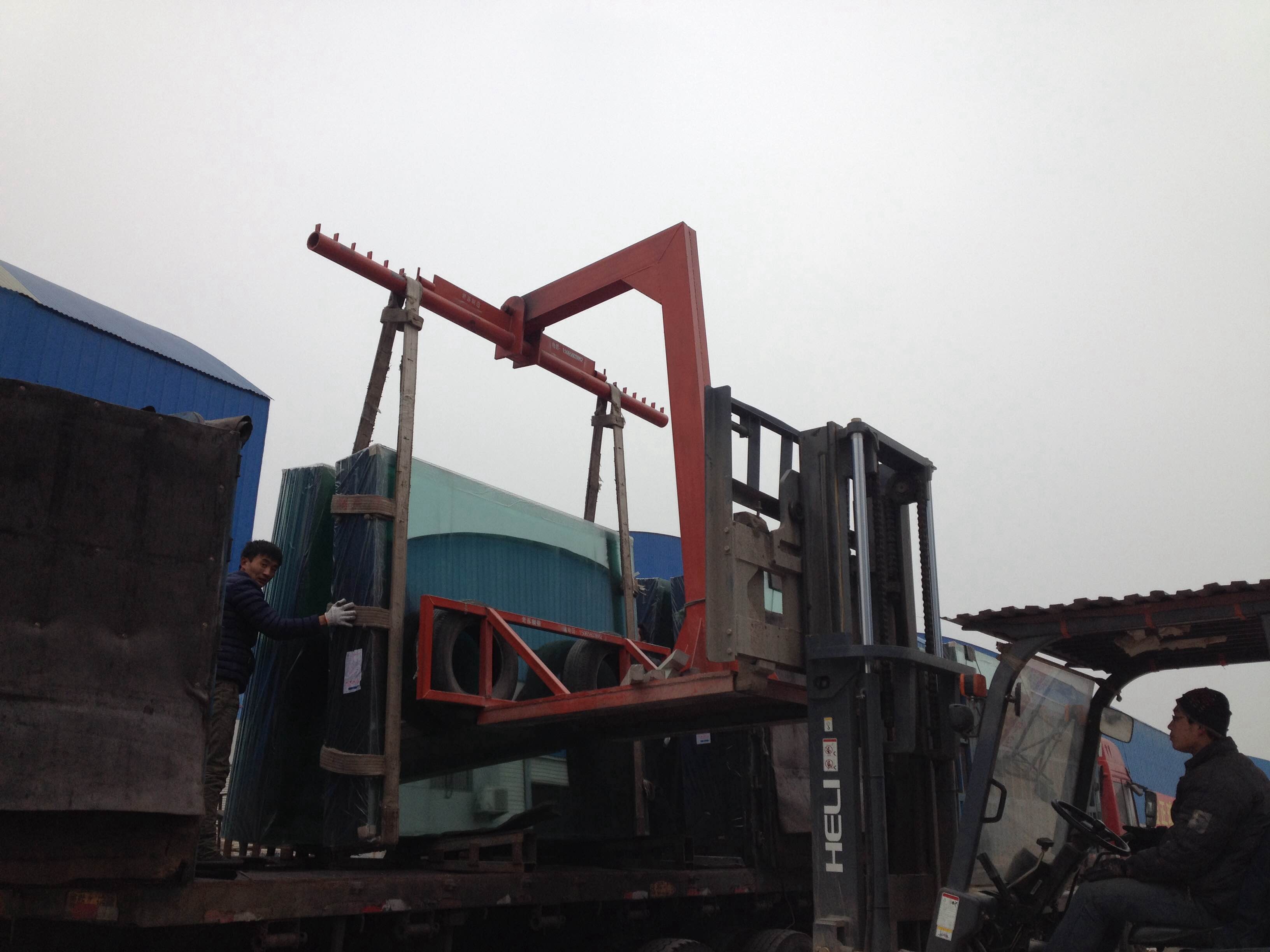

This fork lift extension boom can be used together with the glass hanging bar and glass lifting belt. No need much labor workers, it is easy use. Even one worker could lift the glass pieces quickly and safely, saved the time and labor cost greatly, improved the working efficiency.
With this jib boom forklift attachment, the capabilities of forklift truck is maximized. Even the heavy loads is too far or hard to be lifted, this fork lift jib boom can handle it well. It also have good bearing capacity with reasonable structure designs, which made the forklift truck move safely and fast against any imbalance from the heavy loads. This greatly reduced the risk from movement to the workers and glass.
This forklift truck crane arm with pedestal is customized according different requirements. 24 hours support could be provide to you if needed.
Parameters
Height | 2700mm |
Arm Length | 1450mm |
Size of Pedestal | 1300mm×1300mm |
