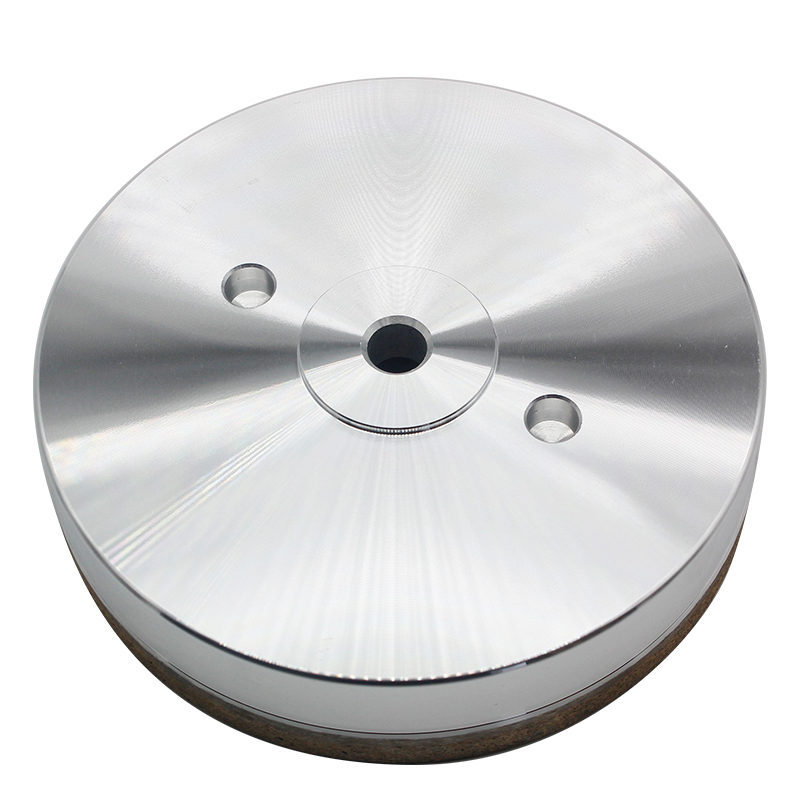

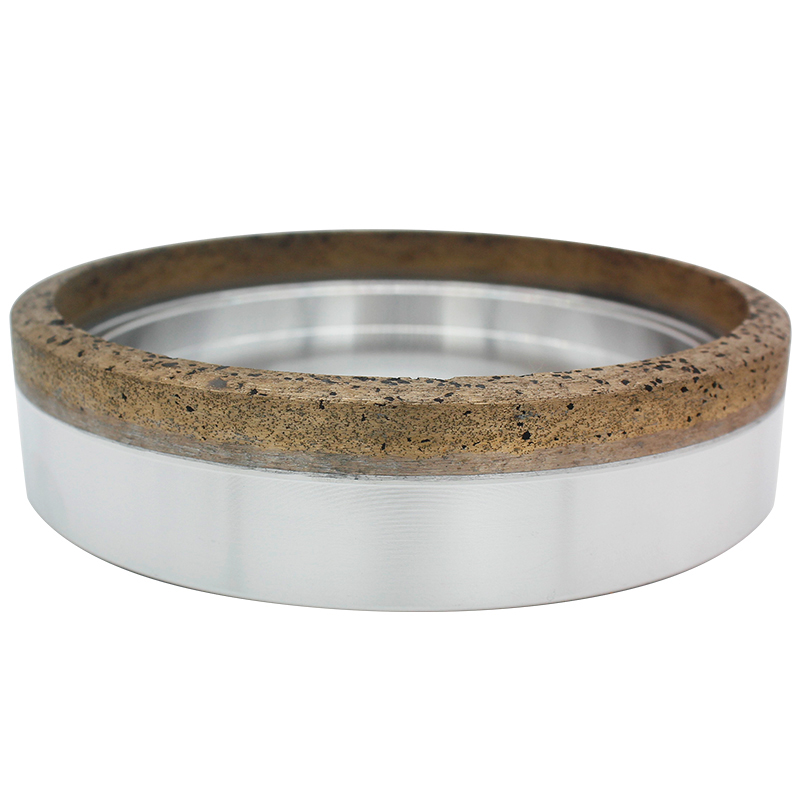

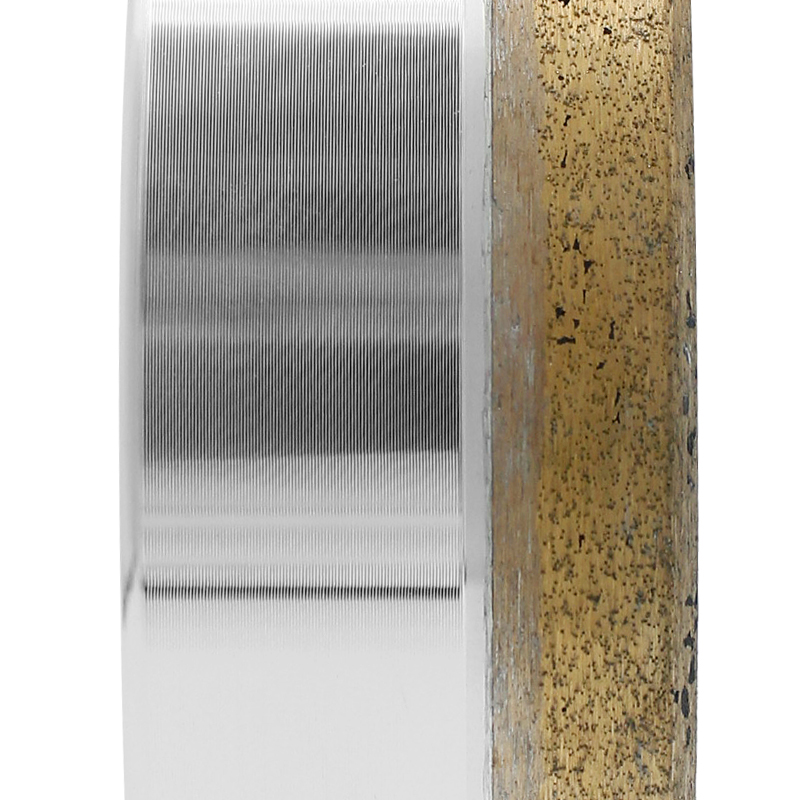

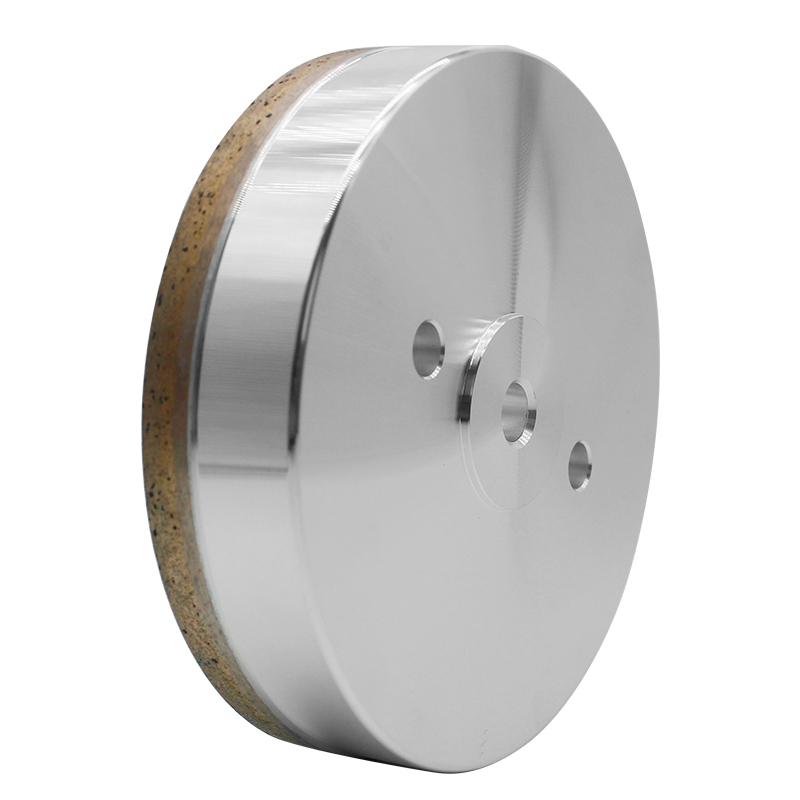

Base Edge Wheel
The base edge wheel is made from high quality emery and all-aluminum base, it is mainly used for grinding the glass base edge by four sides grinding machine.
The base edge wheel have good sharpness, the cutting and feeding speed is fast, can avoid glass edge collapse, have high grinding efficiency. The base edge wheel have good wear resistance, the consumption of working layer is small, have long durability, could provide longer service life. The all-aluminum matrix is light and don’t rust, have good performance on the grinding process.
The base edge wheel can be used on the glass straight edging machine and glass double edging machine, it also can be used together with other wheels, such as the diamond pencil edge grinding wheel, resin diamond grinding wheel, X5000 polishing wheel,10S polishing wheel, CE-3 polishing wheel and so on. The glass thickness from 3mm to 25mm is suitable for the grinding by the base edge wheel. Different glass can be ground by this wheels, such as furniture glass, automotive glass, home appliance glass and construction glass.
Before using the base edge wheels, the workers need to check carefully about the wheels is intact or not, and to confirm that the wheels is in the right position on the right machines. It is necessary that prepare the water well before grinding process, this not only can reduce the operation temperature, but also help to prolong the working life of wheels. At the same time, to keep the stable and appropriate grinding speed is important, this can ensure the security for the workers and glass products. At last, the wheels should be placed well after using.
This base edge wheel is custom made according different drawings, various samples, different size and grits.
Parameters
Diameter | Φ150 |
Hole Size | 10.5 |
Working Rim Size(W*T) | 10×5 |
Granularity | 60#～320# |
Raw Materials | High quality emery and All-aluminum base |
